ICL7611DCBAZ
Standard (General Purpose) Amplifier 1 Circuit Single-Ended 8-SOIC
Availability: In Stock
Package Type: SO-8
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ICL7611DCBAZ by Renesas and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

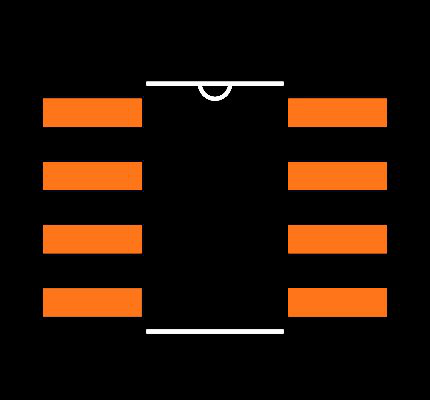

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ICL7611DCBAZ
| Part Name | ICL7611DCBAZ |
| Manufacturer | Renesas Electronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Rail To Rail | No |
| Typical Dual Supply Voltage (V) | ±3 V, ±5 V |
| Typical Input Voltage Noise Density (V) | 100 (nV/√Hz) |
| Typical Gain Bandwidth Product | 1.4 (MHz) |
| Dimensions | 5 x 4 x 1.5 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 1.6 (V/µs) |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 1 |
| Length | 5 (mm) |
| Height | 1.5 (mm) |
| Width | 4 (mm) |
| Typical Single Supply Voltage (V) | 3 → 15 V |
| Package Type | SOIC |
| Minimum Operating Temperature | 0 °C |
| Typical Voltage Gain (V) | 104 dB |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 8 |
Inventory for the ICL7611DCBAZ by Renesas from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| RS UK |
2,246
|
|
Visit Site | |
| TME |
|
|
Visit Site |
No issues have been reported for the ICL7611DCBAZ
