ICL7665SCBAZ
Supervisor Open Drain or Open Collector 2 Channel 8-SOIC
Availability: In Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ICL7665SCBAZ by Renesas and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

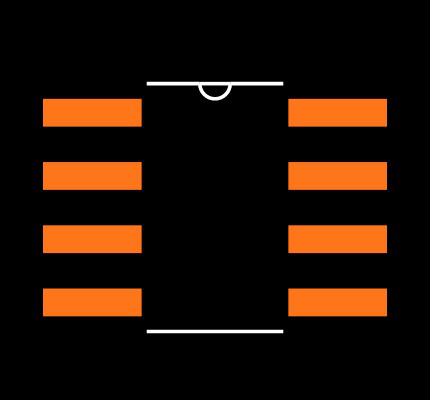

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ICL7665SCBAZ
| Part Name | ICL7665SCBAZ |
| Manufacturer | Renesas Electronics |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Supervisors | 2 |
| Maximum Monitored Voltage (V) | 1.4 (V) |
| Dimensions | 5 x 4 x 1.5 (mm) |
| Maximum Operating Supply Voltage (V) | 16 V |
| Minimum Monitored Voltage (V) | 1.3 (V) |
| Minimum Operating Supply Voltage (V) | 1.6 V |
| Package Type | SOIC |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 8 |
Inventory for the ICL7665SCBAZ by Renesas from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,901
|
|
Visit Site | |
| TME |
839
|
|
Visit Site |
No issues have been reported for the ICL7665SCBAZ
If you experienced any issues with the symbol or footprint, please report it.
