IHLP2525CZER6R8M01
Inductor;High Current;Ind 6.8uH;Tol 20%;Cur 4.5A;SMT;Case 2525;DCR 54 Ohms | Vishay Dale IHLP2525CZER6R8M01
Availability: Out of Stock
Package Type: NON STANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IHLP2525CZER6R8M01 by Vishay Dale and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

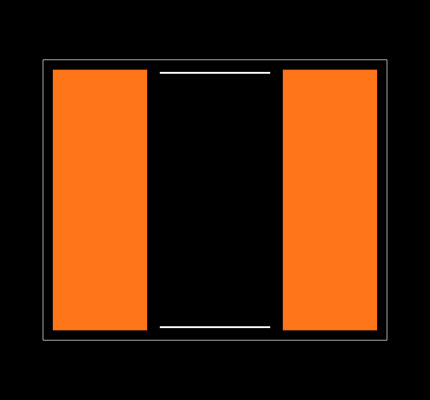

Footprint
No web preview
This Footprint is Available for

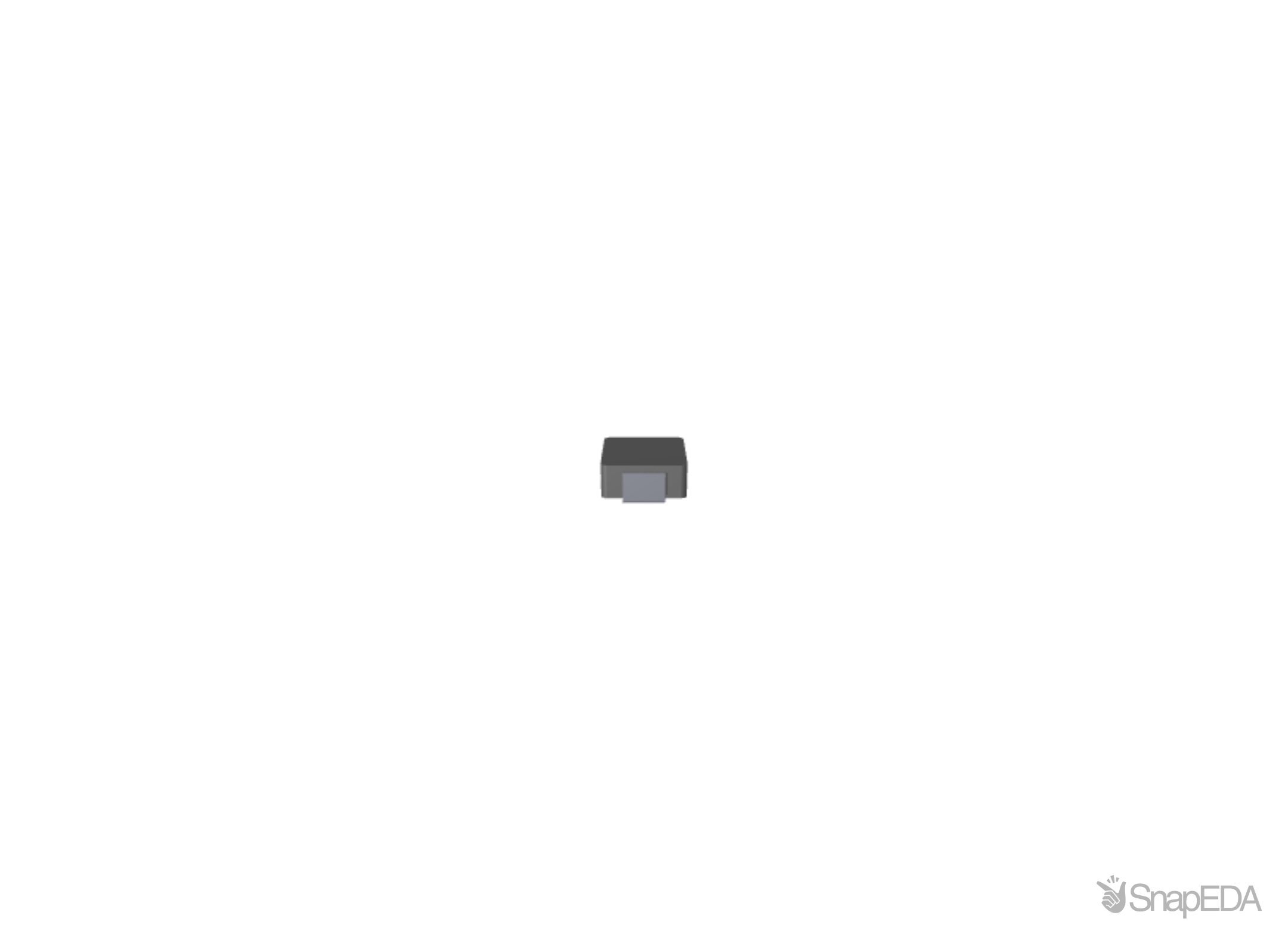

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IHLP2525CZER6R8M01
| Part Name | IHLP2525CZER6R8M01 |
| Manufacturer | Vishay Dale |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 60 (mΩ) |
| Inductor Construction | Shielded |
| Dimensions | 6.86 x 6.47 x 3 (mm) |
| Inductance | 6.8 μH |
| Shielded | Yes |
| Series | IHLP |
| Depth | 6.47 (mm) |
| Height | 3 (mm) |
| Maximum Dc Current (A) | 4.5 (A) |
| Length | 6.86 (mm) |
| Core Material | Metal Composite |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Self Resonant Frequency | 5 (MHz) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±20 (%) |
| Package/Case | 2225 (5664M) |
No issues have been reported for the IHLP2525CZER6R8M01
