IHLP6767GZER1R0M01

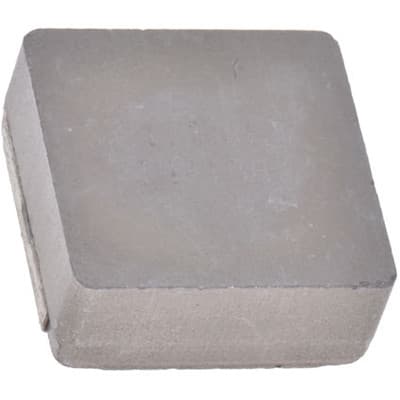

IHLP6767GZ-01 WireWound SMDinductor w/ MetalCore,1 uH +/-20%WireWound 48A Idc | Vishay Dale IHLP6767GZER1R0M01
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IHLP6767GZER1R0M01 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

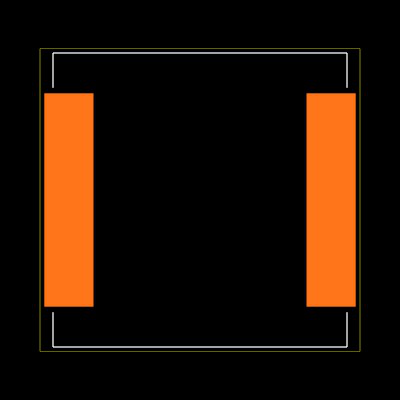

Footprint
No web preview
This Footprint is Available for

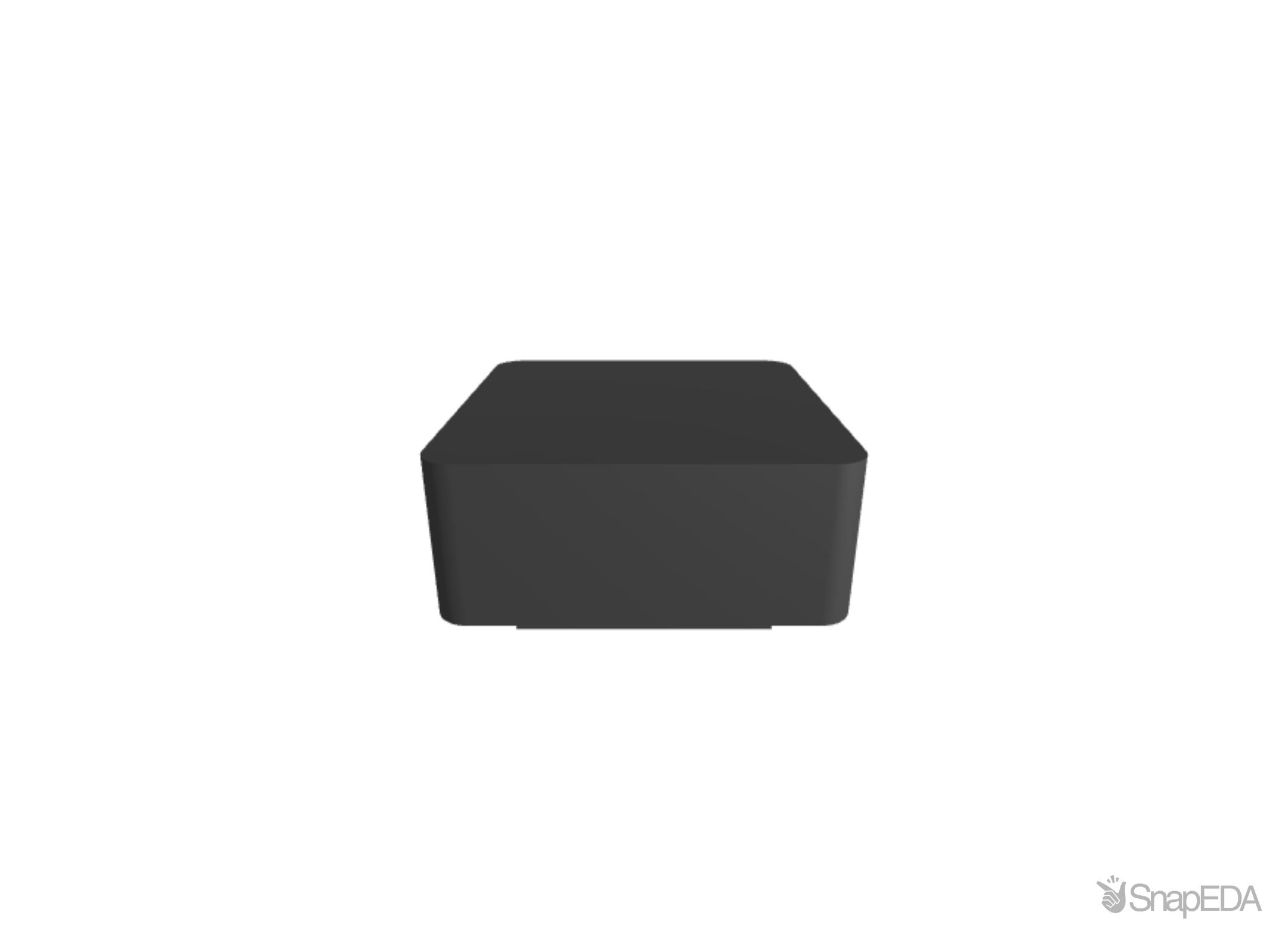

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IHLP6767GZER1R0M01
| Part Name | IHLP6767GZER1R0M01 |
| Manufacturer | Vishay Dale |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Moulded | Yes |
| Maximum Dc Resistance | 1.38 (mΩ) |
| Inductor Construction | Shielded |
| Dimensions | 17.15 x 17.15 x 7 (mm) |
| Tolerance | ±20 (%) |
| Shielded | Yes |
| Series | IHLP-6767GZ-01 |
| Length | 17.15 (mm) |
| Height | 7 (mm) |
| Maximum Dc Current (A) | 48 (A) |
| Depth | 17.15 (mm) |
| Core Material | Metal Composite |
| Inductance | 1 μH |
| Maximum Self Resonant Frequency | 2 (MHz) |
| Maximum Operating Temperature | +125 (°C) |
| Minimum Operating Temperature | -55 (°C) |
| Package/Case | 6767 |
Inventory for the IHLP6767GZER1R0M01 by Vishay from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
2,500
|
176 x $1.71
|
Visit Site | |
| Arrow Electronics |
1
|
|
Visit Site | |
| Avnet America |
200
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site |
No issues have been reported for the IHLP6767GZER1R0M01
If you experienced any issues with the symbol or footprint, please report it.
