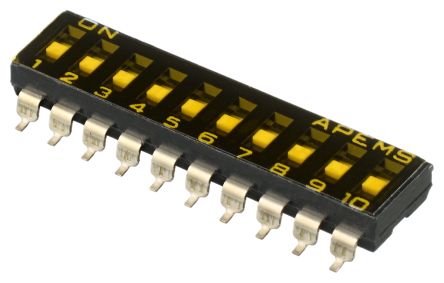

IKD1003000
DIP Switches / SIP Switches
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IKD1003000 by APEM and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IKD1003000
| Part Name | IKD1003000 |
| Manufacturer | APEM |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Minimum Operating Temperature | -20 (°C) |
| Mounting Type | Surface Mount |
| Operating Temperature Range | -20 → +85 (°C) |
| Contact Current Rating (A) | 100 (Non-Switching) mA @ 50 Vdc, 25 (Switching) mA @ 24 V dc |
| Package Style | DIP |
| Voltage Rating (V) | 24 V dc, 50 (V dc) |
| Dielectric Strength | 500 (V ac) |
| Contact Configuration | SPST |
| Actuator Type | Recessed Actuator Slide |
| Maximum Operating Temperature | +85 (°C) |
| Number Of Positions | 10 |
| Contact Material | Phosphor Bronze (Moving Contact) |
