IM43GR
DPDT PCB Mount Latching Relay, 5V dc For Use In Signal Applications | TE Connectivity IM43GR
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IM43GR by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

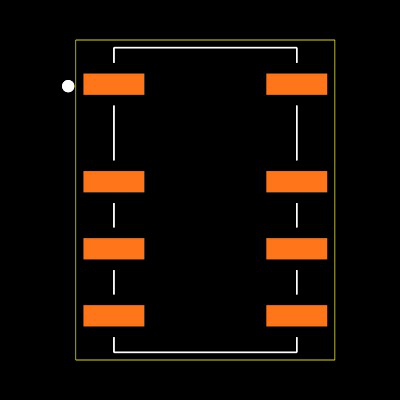

Footprint
No web preview
This Footprint is Available for

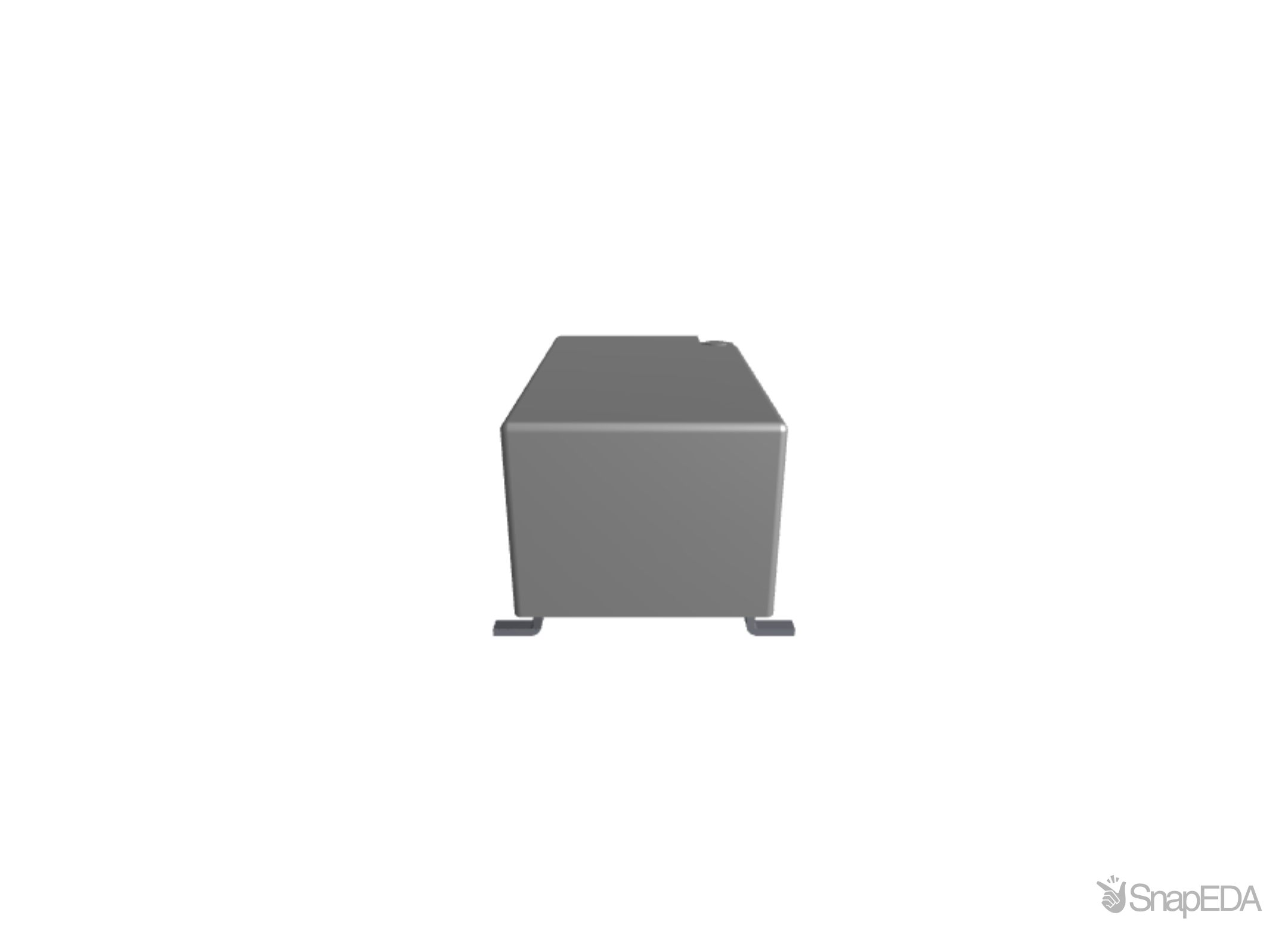

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IM43GR
| Part Name | IM43GR |
| Manufacturer | TE Connectivity |
| Category | Relays |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10 x 5.65 x 7.5 (mm) |
| Coil Voltage (V) | 5 (V dc) |
| Application | Signal |
| Maximum Switching Power Dc | 60 W |
| Terminal Type | Surface Mount |
| Maximum Switching Current Ac (A) | 2 A |
| Coil Power | 100 (mW) |
| Coil Resistance | 250 (Ω) |
| Maximum Operating Temperature | +85 (°C) |
| Latching | Yes |
| Maximum Switching Voltage Dc (V) | 220 (V dc) |
| Operating Temperature Range | -40 → +85 (°C) |
| Switching Current (A) | 2 (A) |
| Contact Configuration | DPDT |
| Maximum Switching Current Dc (A) | 2 A |
| Depth | 7.5 (mm) |
| Maximum Switching Voltage Ac (V) | 250 (V ac) |
| Maximum Switching Power Ac | 62.5 (VA) |
| Mounting Type | Surface Mount |
| Length | 10 (mm) |
| Height | 5.65 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Contact Material | Gold Plated |
Inventory for the IM43GR by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
318
|
82 x $4.23
|
Visit Site | |
| Onlinecomponents |
4,972
|
|
Visit Site | |
| Verical |
4,750
|
|
Visit Site |
No issues have been reported for the IM43GR
