INA125
Instrumentation Amplifier 1 Circuit - 16-SOIC
Availability: Out of Stock
Package Type: SOP-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the INA125 by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

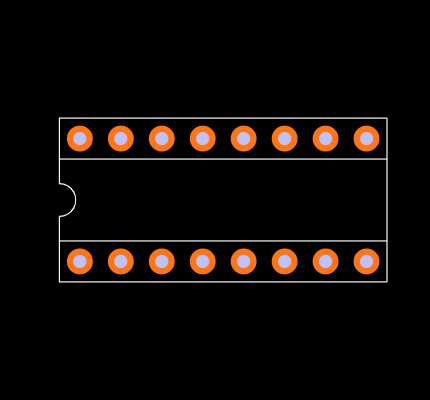

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the INA125
| Part Name | INA125 |
| Manufacturer | Texas Instruments |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Minimum Cmrr | 78 (dB) |
| Maximum Input Offset Voltage (V) | 0.25 (mV) |
| Typical Dual Supply Voltage (V) | ±15 (V) |
| Dimensions | 19.3 x 6.35 x 4.57 (mm) |
| Mounting Type | Through Hole |
| Width | 6.35 (mm) |
| Power Supply Type | Dual, Single |
| Typical Single Supply Voltage (V) | 5 V |
| Height | 4.57 (mm) |
| Maximum Input Resistance | 100 (GΩ) |
| Length | 19.3 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | -55 °C |
| Rail To Rail | No |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 16 |
Inventory for the INA125 by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Mouser |
|
N/A | Visit Site |
No issues have been reported for the INA125
If you experienced any issues with the symbol or footprint, please report it.
