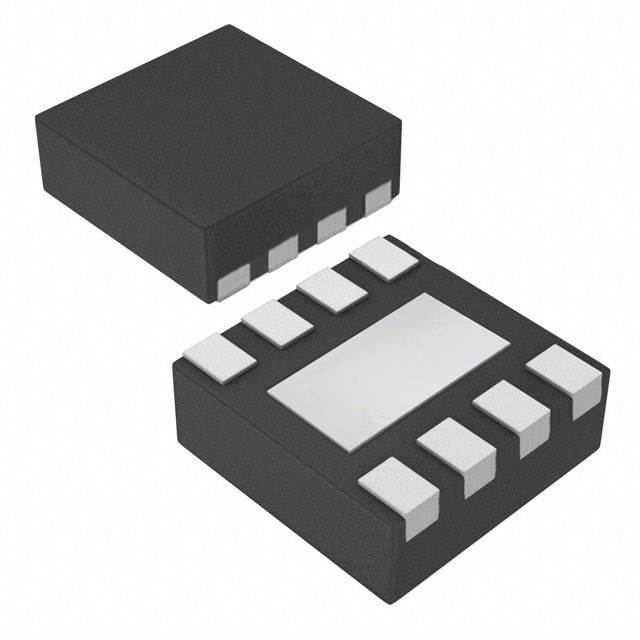

INA826AIDRGT
Precision, 200-μA Supply Current, 36-V Supply Instrumentation Amplifier
Availability: In Stock
Package Type: WSON-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the INA826AIDRGT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for

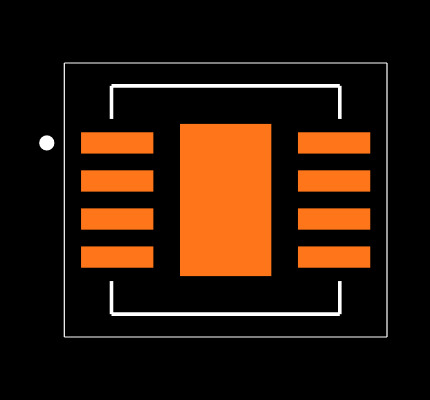

Footprint
No web preview
This Footprint is Available for

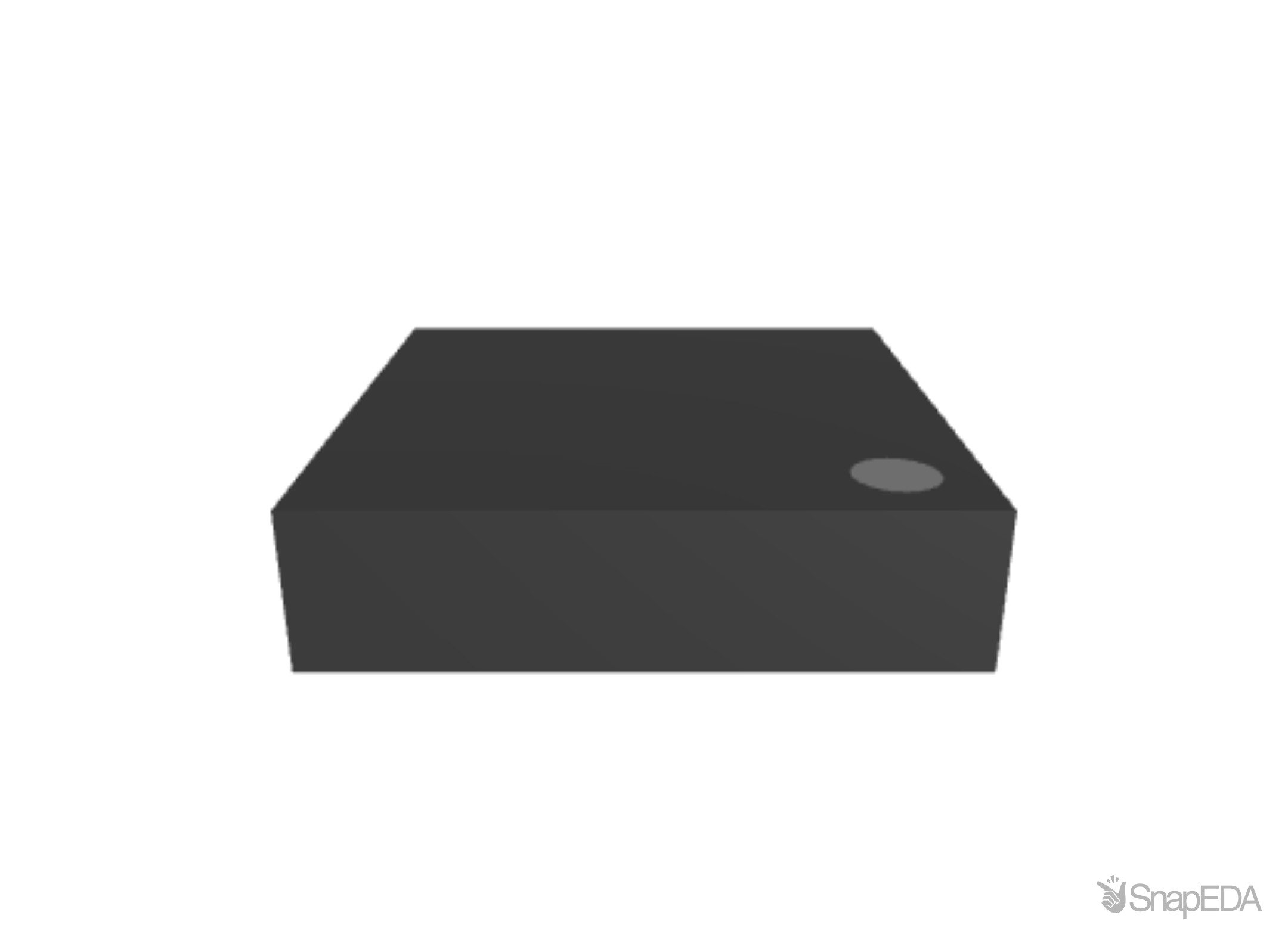

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the INA826AIDRGT
| Part Name | INA826AIDRGT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Cmrr | 80 (dB) |
| Maximum Input Offset Voltage (V) | 150 (µV) |
| Typical Dual Supply Voltage (V) | ±1.35 ±18 (V) |
| Dimensions | 3.1 x 3.1 x 0.72 (mm) |
| Mounting Type | Surface Mount |
| Width | 3.1 (mm) |
| Power Supply Type | Dual, Single |
| Typical Gain Bandwidth Product | 1 (MHz) |
| Height | 0.72 (mm) |
| Typical Single Supply Voltage (V) | 2.7 36 V |
| Maximum Input Resistance | 100 (kΩ) |
| Length | 3.1 (mm) |
| Package Type | SON |
| Minimum Operating Temperature | -50 °C |
| Rail To Rail | Rail to Rail Output |
| Maximum Supply Current (A) | 300 μA |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 8 |
Inventory for the INA826AIDRGT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,068
|
|
Visit Site | |
|
★ Featured
|
27,660
|
97 x $3.10
|
Visit Site | |
| Arrow Electronics |
7
|
1 x $0.46
|
Visit Site | |
| Texas Instruments |
247
|
|
Visit Site | |
| Verical |
7
|
4 x $0.46
|
Visit Site |
No issues have been reported for the INA826AIDRGT
If you experienced any issues with the symbol or footprint, please report it.
