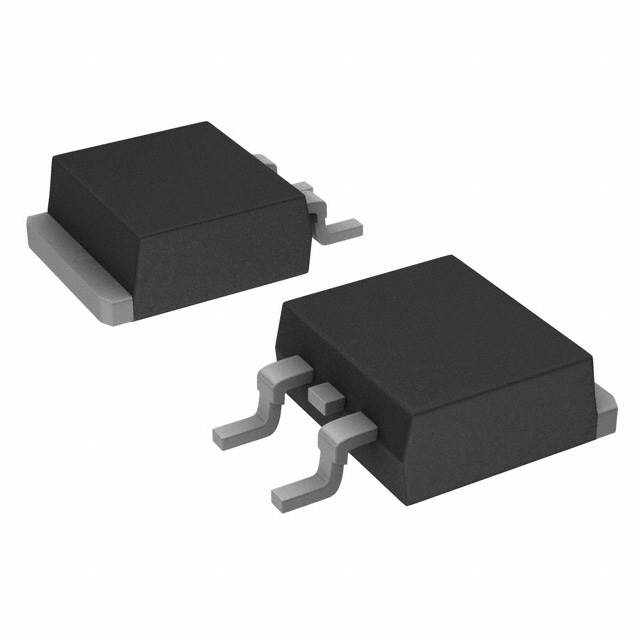

IPB057N06N
N-Channel 60V 17A (Ta), 45A (Tc) 3W (Ta), 83W (Tc) Surface Mount D²PAK (TO-263AB)
Availability: In Stock
Package Type: TO-263-3
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IPB057N06N by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

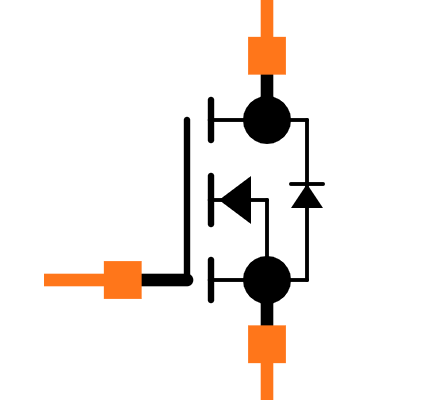

Symbol
No web preview
This Symbol is Available for

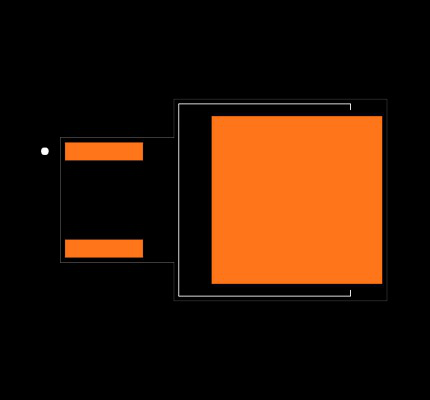

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IPB057N06N
| Part Name | IPB057N06N |
| Manufacturer | Infineon |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 60 V |
| Mounting Type | Through Hole |
| Channel Mode | Enhancement |
| Channel Type | N |
| Package Type | TO-263 |
| Number Of Elements Per Chip | 1 |
| Maximum Continuous Drain Current (A) | 45 A |
| Pin Count | 3 |
