IPL1-105-01-L-S-K
SnapVerified

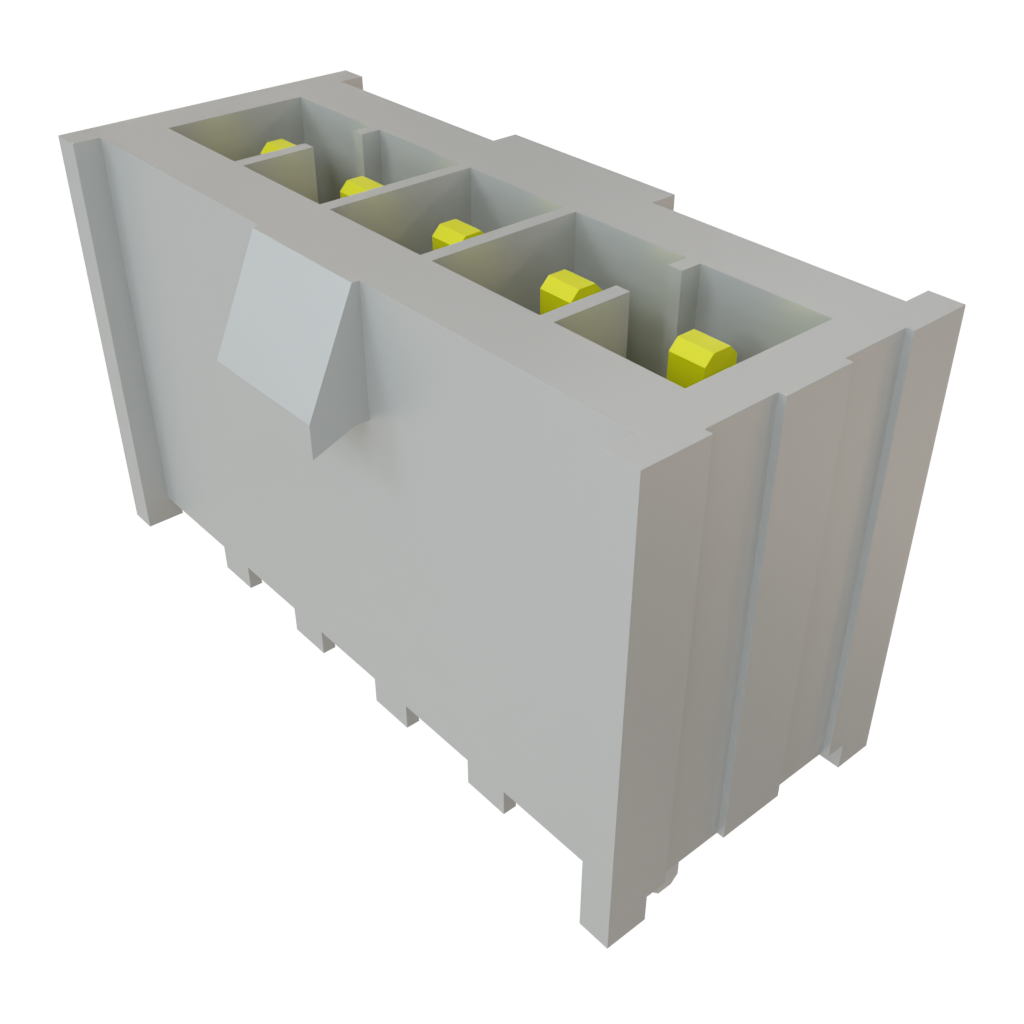

IPL1 - Samtec Mini Mate® 2.54mm Pitch Through Hole Power Header
Availability: In Stock
Country of Origin: Vietnam
CAD Models: Symbol, Footprint, 3D Model
Get this part
Arrival in under 3 days
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IPL1-105-01-L-S-K by Samtec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IPL1-105-01-L-S-K
| Part Name | IPL1-105-01-L-S-K |
| Manufacturer | Samtec |
| HTS Number | 8536.69 |
| ECCN Category | EAR99 |
| Series | IPL1 |
| Country of Origin | Vietnam |
| Packaging | Tube |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 3.8 (A) |
| Contact Plating | Gold |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 675.0 V , 954.0 V dc |
| Series | IPL1 |
| Body Orientation | Straight |
| Termination Method | Solder |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Shrouded Unshrouded | Shrouded |
| Pitch | 2.54 (mm) |
| Number Of Contacts | 5 |
| Contact Material | Phosphor Bronze |
Inventory for the IPL1-105-01-L-S-K by Samtec from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site |
No issues have been reported for the IPL1-105-01-L-S-K
