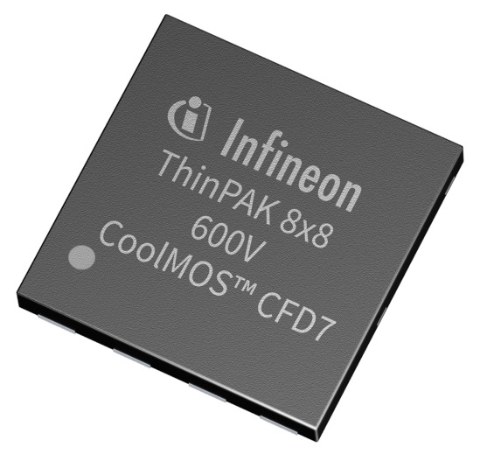

IPL60R075CFD7AUMA1
Ultra-fast body diode | Best-in-class reverse recovery charge (Qrr) | Improved reverse diode dv/dt and dif/dt ruggedness | Lowest FOM RDS(on) x Qg and Eoss
Availability: Out of Stock
Package Type: INF-PG-VSON-4

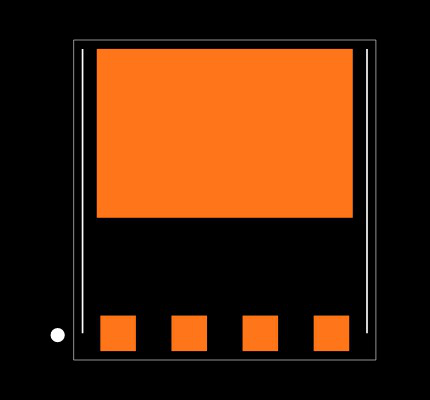

CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IPL60R075CFD7AUMA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IPL60R075CFD7AUMA1
| Part Name | IPL60R075CFD7AUMA1 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/500v-900v-coolmos-n-channel-power-mosfet/600v-coolmos-n-channel-power-mosfet/ipl60r075cfd7/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 600 V |
| Channel Mode | Enhancement |
| Maximum Continuous Drain Current (A) | 33 A |
| Series | CoolMOSâ„¢ CFD7 |
| Channel Type | N |
| Maximum Gate Threshold Voltage (V) | 4.5 (V) |
| Package Type | ThinPAK 8 x 8 |
| Number Of Elements Per Chip | 1 |
| Pin Count | 5 |
| Mounting Type | Surface Mount |
| Transistor Material | Si |
| Maximum Drain Source Resistance | 75 mΩ |
No issues have been reported for the IPL60R075CFD7AUMA1
If you experienced any issues with the symbol or footprint, please report it.
