IPLU300N04S4R8XTMA1

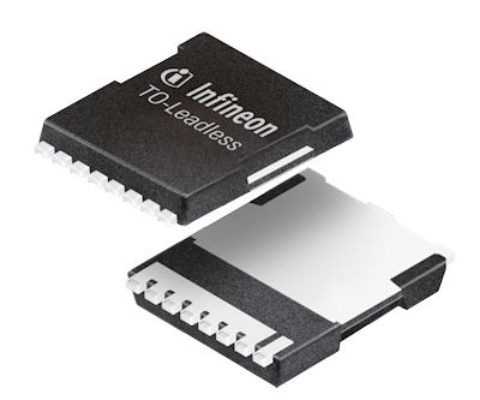

V BRDSS= 40V | R DSon (max) = 0.77mOhm | I D= 300A | R thJC= 0.35K/W | Package Footprint Area = 115mm | AOI (Automatic Optical Inspection) capability included | 100% lead-free | TOLL Package = JEDEC registered
Availability: In Stock
Package Type: POWERSFN-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IPLU300N04S4R8XTMA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IPLU300N04S4R8XTMA1
| Part Name | IPLU300N04S4R8XTMA1 |
| Manufacturer | Infineon |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/20v-800v-automotive-mosfet/20v-40v-n-channel-automotive-mosfet/iplu300n04s4-r8/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 40 V |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Maximum Continuous Drain Current (A) | 300 A |
| Channel Type | N |
