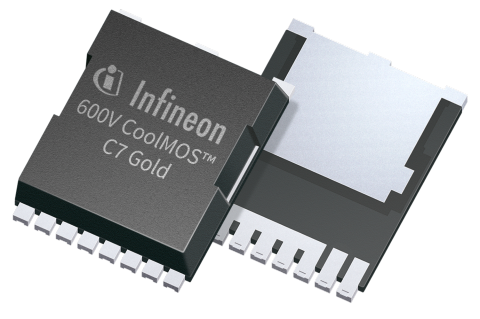

IPT60R028G7XTMA1
Gives best-in-class FOM R DS(on)xE oss and R DS(on)xQ G | Enables best-in-class R DS(on) in smallest footprint
Availability: In Stock
Package Type: POWERSFN-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IPT60R028G7XTMA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IPT60R028G7XTMA1
| Part Name | IPT60R028G7XTMA1 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/500v-900v-coolmos-n-channel-power-mosfet/600v-coolmos-n-channel-power-mosfet/ipt60r028g7/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 600 V |
| Channel Mode | Enhancement |
| Maximum Continuous Drain Current (A) | 75 A |
| Series | CoolMOSâ„¢ G7 |
| Channel Type | N |
| Maximum Gate Threshold Voltage (V) | 4 (V) |
| Package Type | HSOF-8 |
| Number Of Elements Per Chip | 1 |
| Pin Count | 8 |
| Mounting Type | Surface Mount |
| Transistor Material | Si |
| Maximum Drain Source Resistance | 28 mΩ |
