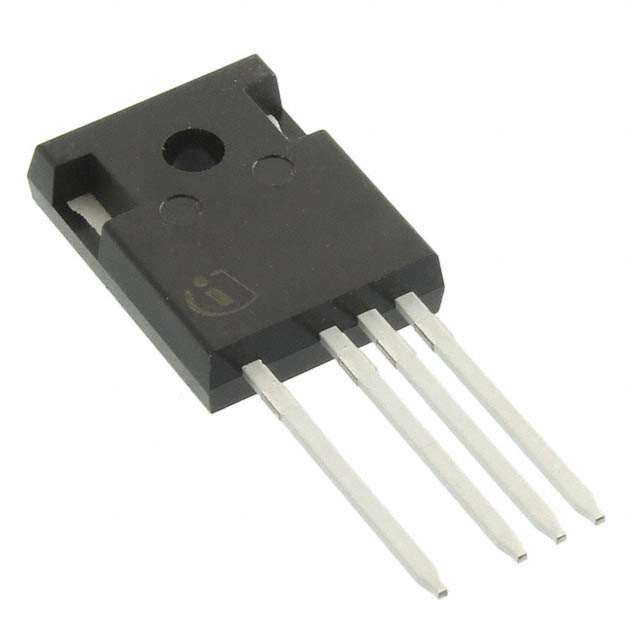

IPZ60R040C7XKSA1
The new 600V CoolMOS â„¢ C7 series from Infineon offers a ~50% reduction in turn-off losses (E oss ) compared to the CoolMOSâ„¢ CP, offering an outstanding level of performance in PFC, TTF and other hard-switching topologies.
Availability: In Stock
Package Type: TO-247-4
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IPZ60R040C7XKSA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

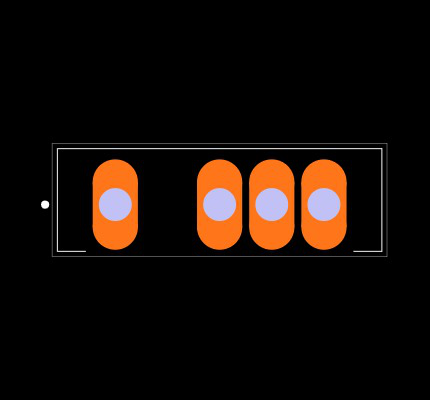

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IPZ60R040C7XKSA1
| Part Name | IPZ60R040C7XKSA1 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/500v-900v-coolmos-n-channel-power-mosfet/600v-coolmos-n-channel-power-mosfet/ipz60r040c7/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 600 V |
| Mounting Type | Through Hole |
| Maximum Continuous Drain Current (A) | 50 A |
| Series | CoolMOS™ C7 |
| Channel Type | N |
| Maximum Gate Threshold Voltage (V) | 4 (V) |
| Maximum Drain Source Resistance | 40 mO |
| Package Type | TO-247-4 |
| Number Of Elements Per Chip | 1 |
| Pin Count | 4 |
Inventory for the IPZ60R040C7XKSA1 by Infineon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
240
|
|
Visit Site | |
|
★ Featured
|
170
|
37 x $8.15
|
Visit Site | |
| Arrow Europe |
124
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
178
|
|
Visit Site | |
| RS UK |
178
|
1 x $8.17
|
Visit Site | |
| Rutronik |
|
240 x $6.56
|
Visit Site | |
| TME |
18
|
1 x $13.57
|
Visit Site | |
| Verical |
480
|
|
Visit Site | |
| element14 Singapore |
178
|
|
Visit Site |
No issues have been reported for the IPZ60R040C7XKSA1
If you experienced any issues with the symbol or footprint, please report it.
