IR11662SPBF
Secondary side high speed SR controller | DCM, CrCM flyback and Resonant half-bridge topologies | 200V proprietary IC technology | Max 500KHz switching frequency
Availability: In Stock
Package Type: SOIC-8

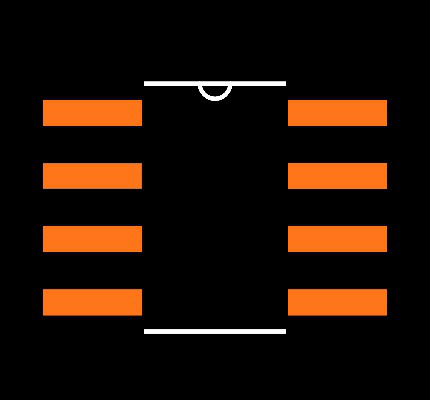

CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IR11662SPBF by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

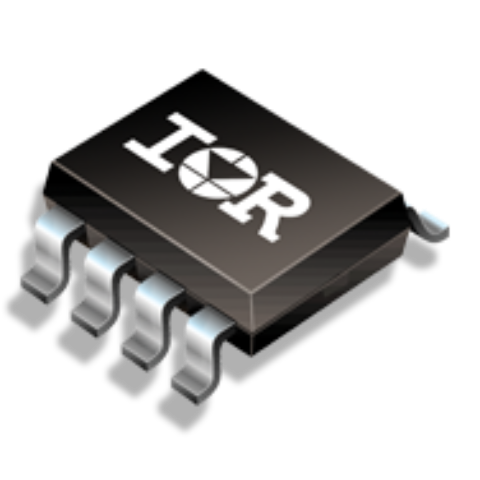

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IR11662SPBF
| Part Name | IR11662SPBF |
| Manufacturer | Infineon |
| Life Cycle Status | Obsolete |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/ac-dc-power-conversion/ac-dc-pwm-pfc-controller/synchronous-rectification-ics/ir11662spbf/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Bridge Type | Half Bridge |
| Mounting Type | Surface Mount |
| High And Low Sides Dependency | Synchronous |
| Number Of Drivers | 1 |
| Package Type | SOIC |
| Pin Count | 8 |
