IR2010SPBF
Half-Bridge Gate Driver IC Non-Inverting 16-SOIC
Availability: In Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IR2010SPBF by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

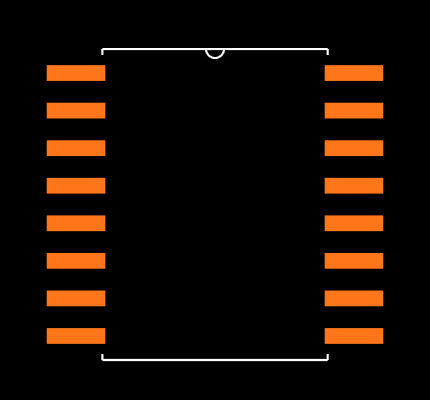

Footprint
No web preview
This Footprint is Available for

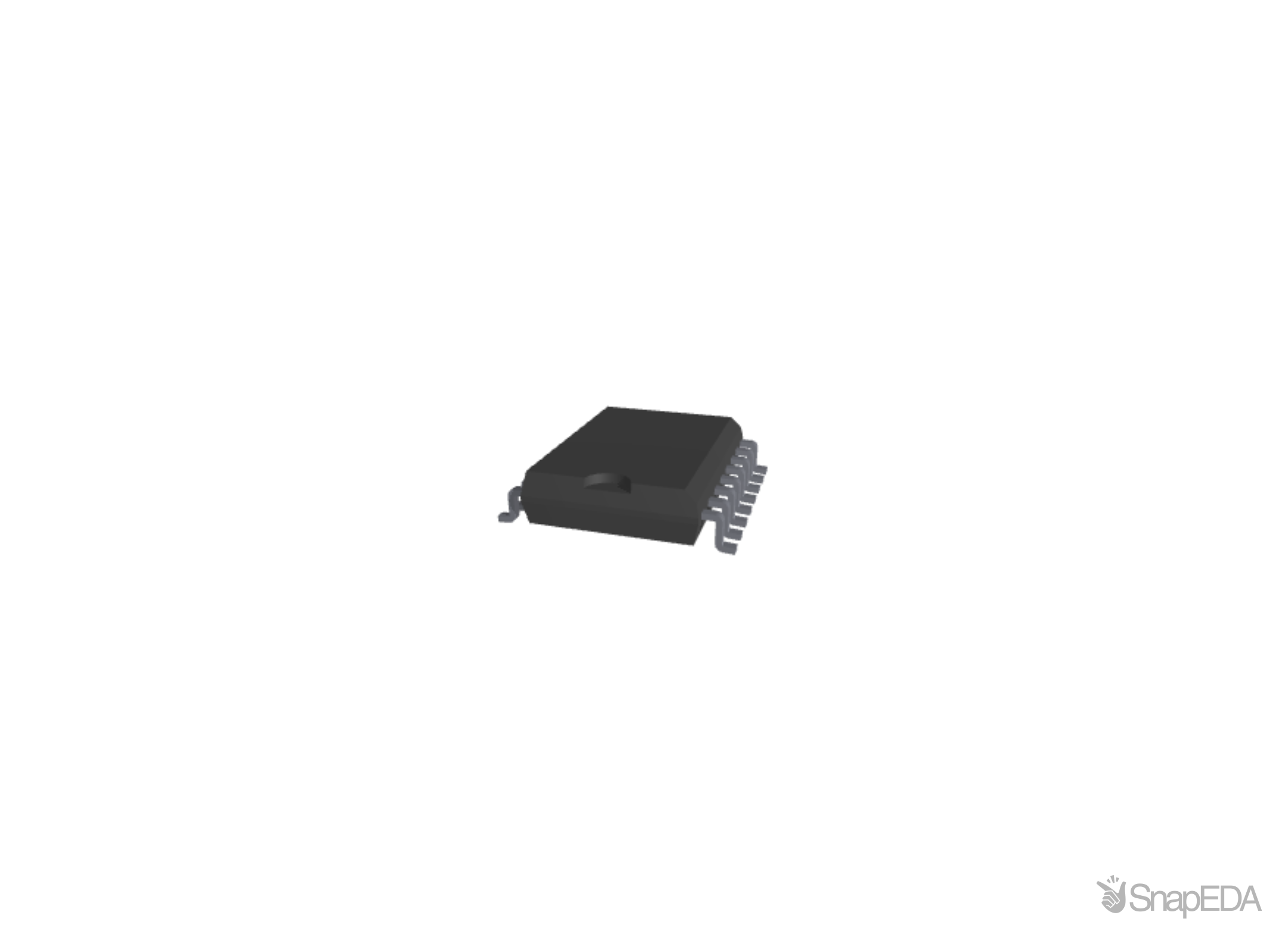

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IR2010SPBF
| Part Name | IR2010SPBF |
| Manufacturer | Infineon |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/gate-driver-ics/ir2010s/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Current (A) | 3 A |
| Logic Type | CMOS, LSTTL |
| Package Type | SO16W |
| Driver Type | MOSFET |
| Fall Time | 15 (ns) |
| Pin Count | 16 |
| Supply Voltage (V) | 20 (V) |
Inventory for the IR2010SPBF by Infineon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,765
|
|
Visit Site | |
|
★ Featured
|
40,950
|
345 x $0.88
|
Visit Site | |
| Arrow Europe |
490
|
|
Visit Site | |
| Verical |
705
|
33 x $2.84
|
Visit Site |
No issues have been reported for the IR2010SPBF
If you experienced any issues with the symbol or footprint, please report it.
