Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
IR2125
High-Side Gate Driver IC Non-Inverting 16-SOIC
Availability: In Stock
Package Type: DIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IR2125 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

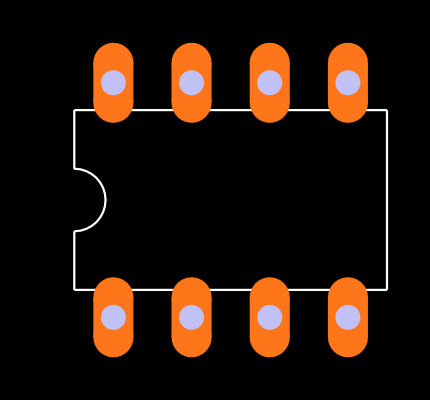

- Symbol and Footprint
- 3D Model

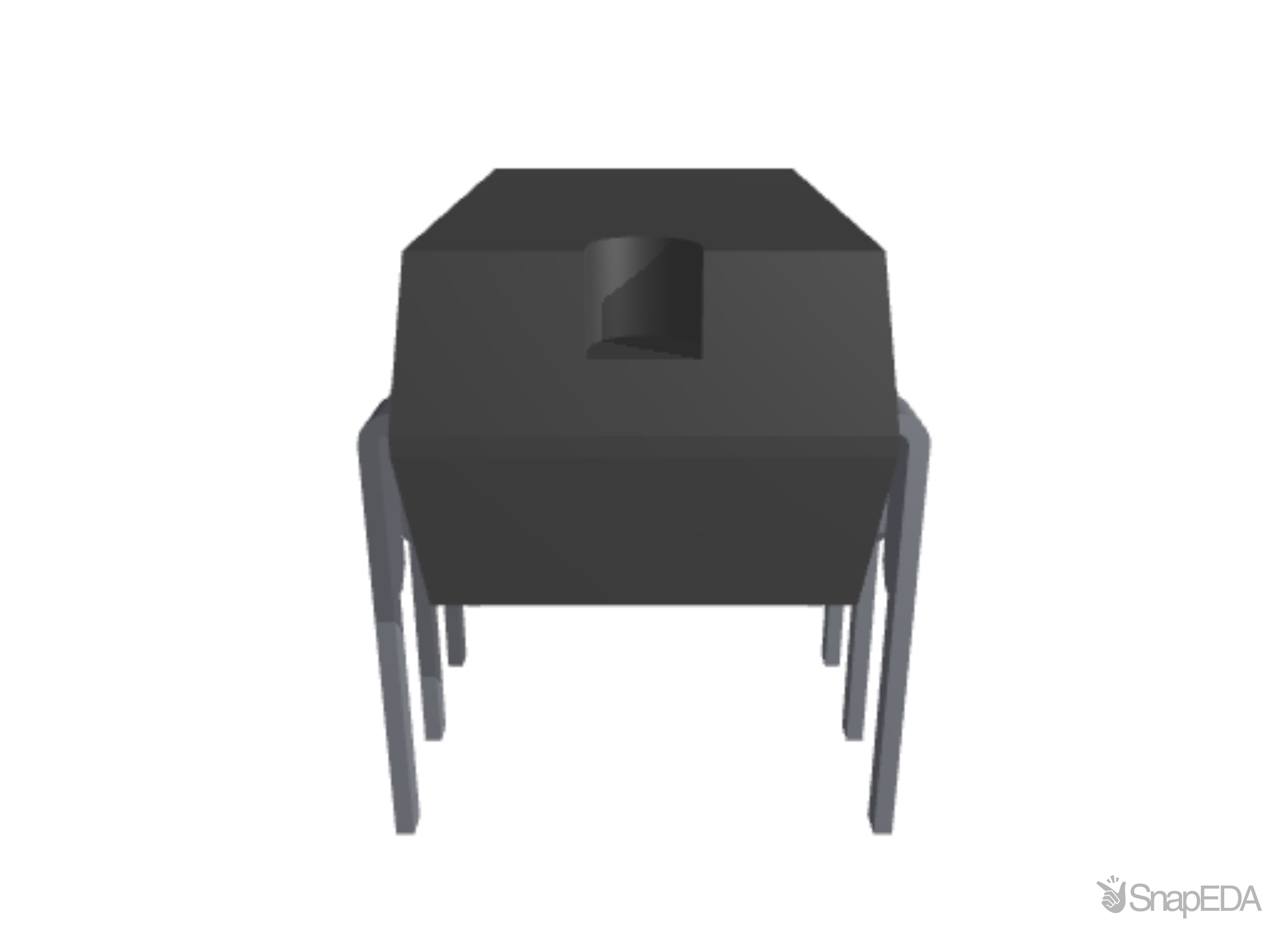

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IR2125
| Part Name | IR2125 |
| Manufacturer | Infineon |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Output Current (A) | 3.3 A |
| Logic Type | CMOS, TTL |
| Number Of Drivers | 1 |
| Package Type | 16-Lead SOIC |
| Supply Voltage (V) | 0 → 18 (V) |
| Fall Time | 26 (ns) |
| Pin Count | 16 |
| Driver Type | MOSFET |
Inventory for the IR2125 by Infineon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site | |
|
★ Featured
|
2,888
|
104 x $3.36
|
Visit Site |
No issues have been reported for the IR2125
If you experienced any issues with the symbol or footprint, please report it.
