IR2153
Half-Bridge Gate Driver IC RC Input Circuit 8-PDIP
Availability: In Stock
Package Type: DIP-8

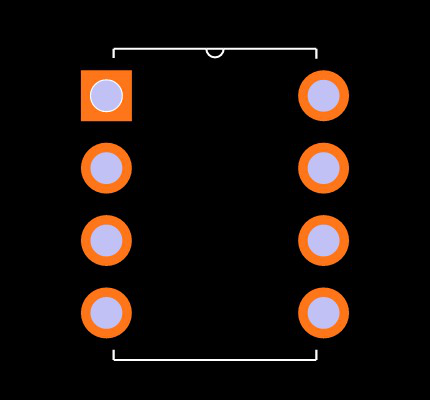

CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IR2153 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IR2153
| Part Name | IR2153 |
| Manufacturer | Infineon |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Polarity | Inverting, Non-Inverting |
| Number Of Outputs | 2 |
| Mounting Type | Through Hole |
| Bridge Type | Half Bridge |
| High And Low Sides Dependency | Synchronous |
| Logic Type | CMOS |
| Number Of Drivers | 2 |
| Package Type | PDIP |
| Driver Type | MOSFET |
| Supply Voltage (V) | 16.8 (V) |
| Pin Count | 8 |
| Topology | Half Bridge |
