IR2184
Half-Bridge Gate Driver IC Non-Inverting 8-PDIP
Availability: Out of Stock
Package Type: DIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IR2184 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

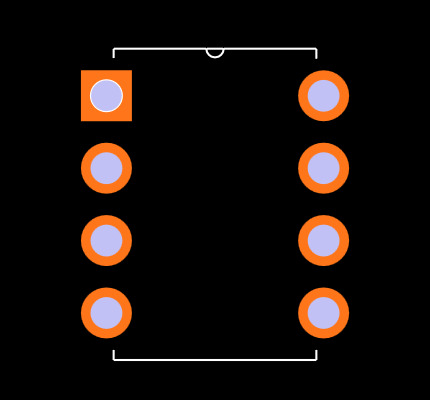

- Symbol and Footprint
- 3D Model

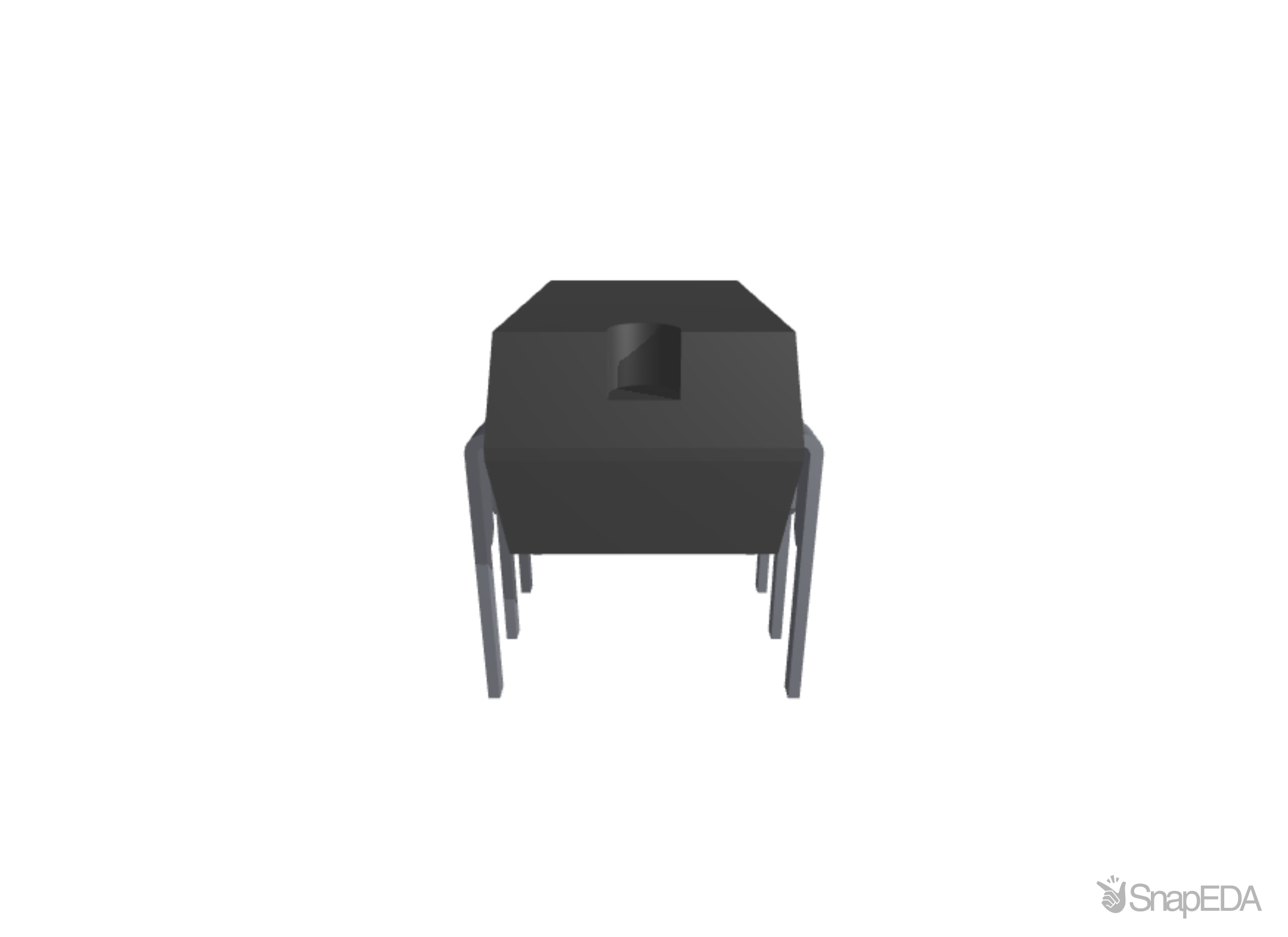

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IR2184
| Part Name | IR2184 |
| Manufacturer | Infineon |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Inverting, Non-Inverting |
| Number Of Outputs | 2 |
| Mounting Type | Surface Mount |
| Bridge Type | Half Bridge |
| High And Low Sides Dependency | Synchronous |
| Number Of Drivers | 2 |
| Pin Count | 14 |
| Package Type | SOIC |
| Supply Voltage (V) | 20 (V) |
| Output Current (A) | 2.3 A |
| Topology | Half Bridge |
