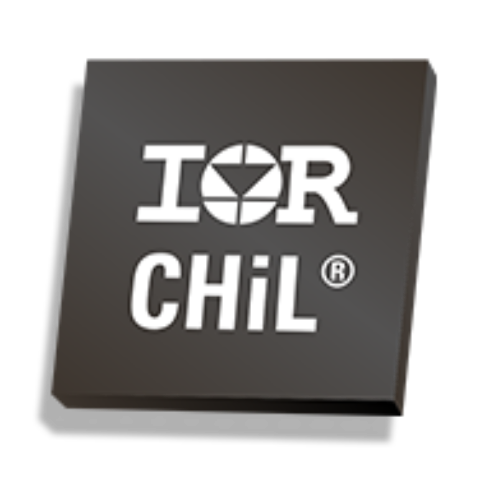

IR3595
8-phase single or 6+2 dual loop configurable PWM Controller | 8-bit PVID, PWM VID or I2C setpoint control on loop 1 | Serial I2C setpoint control on optional loop 2 | Programmable Constant Current Protection | Dead-phase Protection and Flag | Min/Max Telemetry registers and real-time monitoring via I2C (IIN, VIN, IOUT, VOUT, Temp) | Programmable 1-phase or 2-phase for Light Loads and Active Diode Emulation for Very Light Loads | IR Adaptive Transient Algorithm (ATA) minimizes output bulk capacitors and system cost | IR Efficiency Shaping Features including Variable Gate Drive and Dynamic Phase Control | Auto-Phase Detection with auto-compensation | Protection: OVP, UVP, OC Warn, OCP, OT Warn, OTP | Multiple Time Programming (MTP) with integrated charge pump for easy custom configuration | Compatible with IR ATL and 3.3V tri-state Drivers | 200kHz to 2MHz switching frequency per phase | +3.3V supply voltage -40C to 85C Ambient | Pb-Free, Halogen Free, RoHS, 7x7mm, 56-pin, 0.4mm pitch QFN
