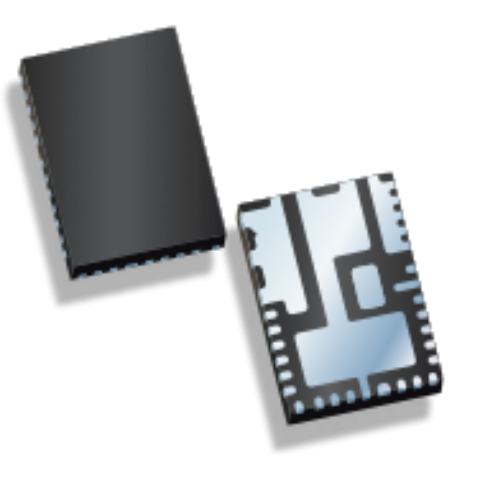

IR38063MTRPBF
Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 25A 34-PowerVFQFN
Availability: In Stock
Package Type: POWERVFQFN-34
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IR38063MTRPBF by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

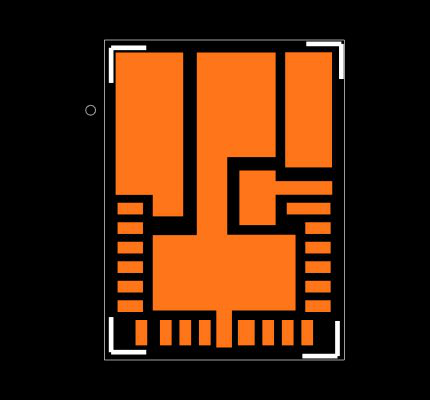

- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IR38063MTRPBF
| Part Name | IR38063MTRPBF |
| Manufacturer | Infineon |
| Product Link | https://www.infineon.com/cms/en/product/power/dc-dc-converters/integrated-pol-voltage-regulators/ir38063m/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Mounting Type | Surface Mount |
| Regulator Type | DC-DC |
| Maximum Switching Frequency | 1.5 MHz |
| Output Voltage (V) | 0.875 V |
| Package Type | PQFN |
| Regulator Function | Buck Regulator |
| Maximum Output Current (A) | 25 (A) |
| Pin Count | 26 |
| Accuracy | 0.005 |
