IR4427PBF

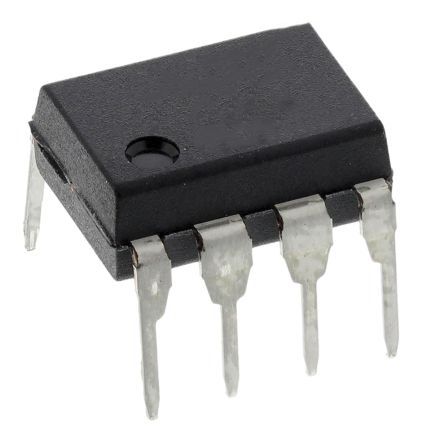

IR4427PBF, Dual MOSFET Power Driver 3.3A, 6 to 20 V, Non-Inverting, 8-Pin PDIP | Infineon IR4427PBF
Availability: In Stock
Package Type: DIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IR4427PBF by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

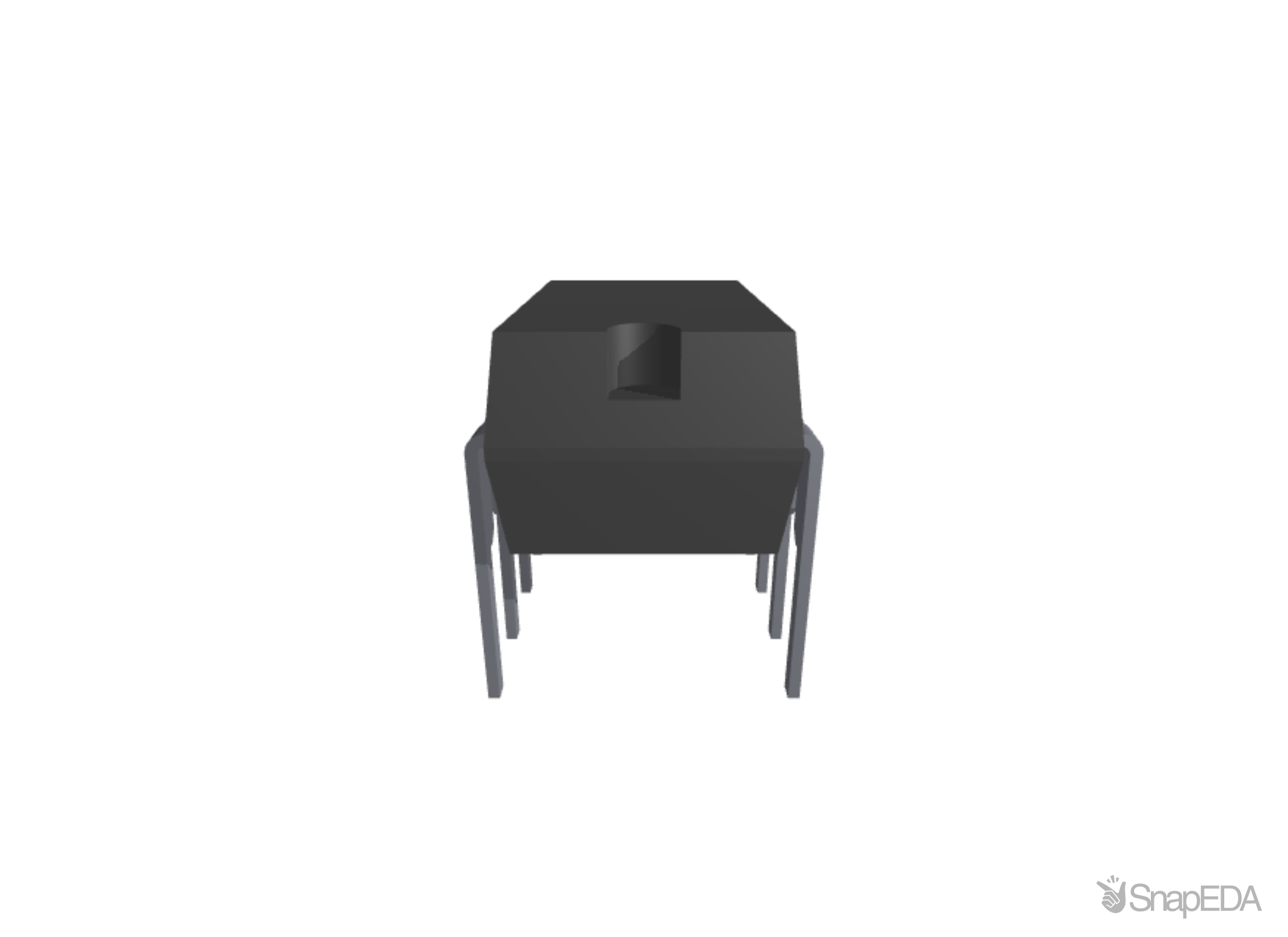

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IR4427PBF
| Part Name | IR4427PBF |
| Manufacturer | Infineon |
| Category | Electronic Components |
| Product Link | https://www.infineon.com/cms/en/product/power/gate-driver-ics/ir4427/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Current (A) | 1.5 A |
| Logic Type | CMOS |
| Number Of Drivers | 2 |
| Package Type | PDIP |
| Supply Voltage (V) | 6 → 20 (V) |
| Pin Count | 8 |
| Fall Time | 10 (ns) |
