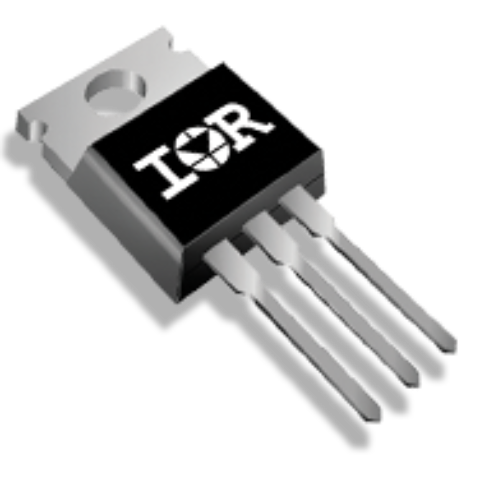

IRF100B201
N-Channel 100 V 192A (Tc) 441W (Tc) Through Hole TO-220AB
Availability: Out of Stock
Package Type: TO-220
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRF100B201 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

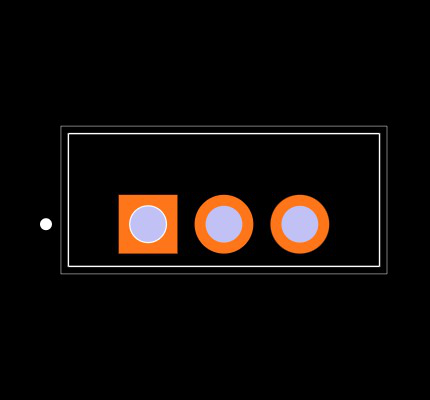

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRF100B201
| Part Name | IRF100B201 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/12v-300v-n-channel-power-mosfet/irf100b201/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 100 V |
| Maximum Continuous Drain Current (A) | 192 A |
| Mounting Type | Through Hole |
| Series | HEXFET |
| Channel Type | N |
| Package Type | TO-220 |
No issues have been reported for the IRF100B201
If you experienced any issues with the symbol or footprint, please report it.
