IRF7404
P-Channel 20 V 6.7A (Ta) 2.5W (Ta) Surface Mount 8-SO
Availability: Out of Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRF7404 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

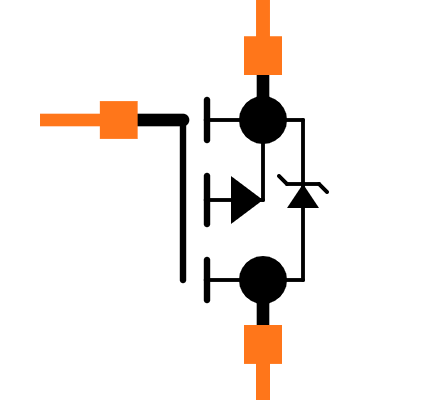

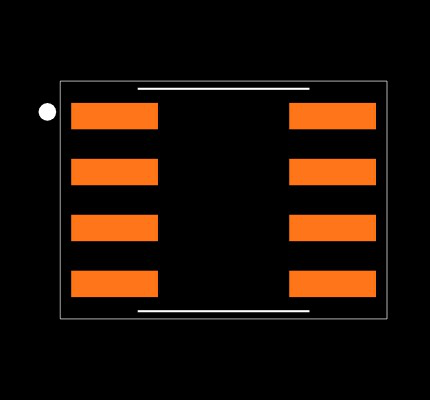

- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRF7404
| Part Name | IRF7404 |
| Manufacturer | Infineon |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Maximum Drain Source Voltage (V) | 20 V |
| Maximum Continuous Drain Current (A) | 6.7 A |
| Mounting Type | Through Hole |
| Series | HEXFET |
| Channel Type | N |
| Package Type | SO-8 |
