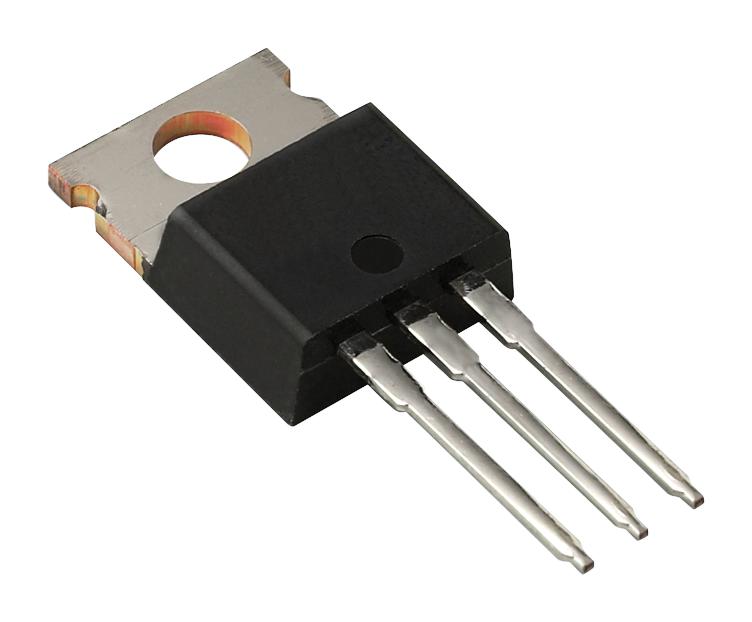

IRF9540NPBF
Power MOSFET,P-Ch,VDSS -100V,RDS(ON) 0.117Ohm,ID -23A,TO-220AB,PD 140W,VGS+/-20V | Infineon IRF9540NPBF
Availability: In Stock
Package Type: TO-220
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRF9540NPBF by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRF9540NPBF
| Part Name | IRF9540NPBF |
| Manufacturer | Infineon Technologies |
| Category | Electronic Components |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/20v-250v-p-channel-power-mosfet/irf9540n/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 3 |
| Maximum Drain Source Voltage (V) | 100 V |
| Typical Gate Charge @ Vgs | 97 nC @ 10 V |
| Mounting Type | Through Hole |
| Maximum Continuous Drain Current (A) | 23 A |
| Maximum Gate Source Voltage (V) | -20 V, +20 V |
| Series | HEXFET |
| Channel Type | P |
| Maximum Power Dissipation | 140 W |
| Transistor Material | Si |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage (V) | 4 (V) |
| Package Type | TO-220AB |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Minimum Gate Threshold Voltage (V) | 2 (V) |
| Height | 8.77 (mm) |
| Maximum Operating Temperature | +175 °C |
| Maximum Drain Source Resistance | 117 mΩ |
| Transistor Configuration | Single |
Inventory for the IRF9540NPBF by Infineon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
11,794
|
|
Visit Site | |
|
★ Featured
|
110,820
|
1,750 x $0.17
|
Visit Site | |
| Arrow Europe |
25,069
|
|
Visit Site | |
| Verical |
31
|
31 x $2.43
|
Visit Site |
No issues have been reported for the IRF9540NPBF
