IRF9630

Name: IRF9630
Brand: Vishay

Trans MOSFET P-CH 200V 6.5A 3-Pin(3+Tab) TO-220AB Trans MOSFET P-CH 200V 6.5A 3-Pin(3+Tab) TO-220AB Trans MOSFET P-CH 200V 6.5A 3-Pin(3+Tab) TO-220AB

Availability: Out of Stock

Package Type: TO-220-3

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the IRF9630 by Vishay and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

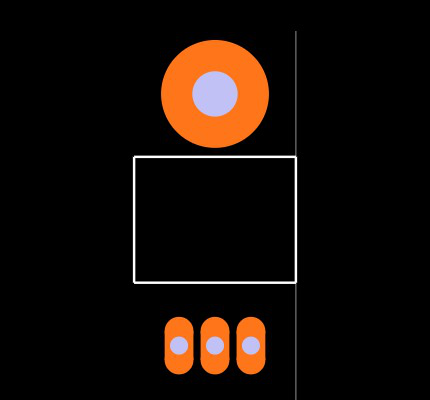

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the IRF9630

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the IRF9630

Part Name	IRF9630
Manufacturer	Vishay Siliconix
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Maximum Drain Source Voltage (V)	200 V
Maximum Continuous Drain Current (A)	6.5 A
Mounting Type	Through Hole
Maximum Gate Source Voltage (V)	-20 V, +20 V
Maximum Power Dissipation	74 W
Transistor Material	Si
Channel Mode	Enhancement
Height	9.01 (mm)
Width	4.7 (mm)
Length	10.41 (mm)
Maximum Drain Source Resistance	800 mΩ
Package Type	TO-220AB
Number Of Elements Per Chip	1
Minimum Operating Temperature	-55 °C
Minimum Gate Threshold Voltage (V)	2 (V)
Typical Gate Charge Vgs	29 nC @ 10 V
Channel Type	P
Maximum Operating Temperature	+150 °C
Pin Count	3
Transistor Configuration	Single

We could not find inventory or pricing across major distributors for the IRF9630 by Vishay.
