IRFL9014
P-Channel 60 V 1.8A (Tc) 2W (Ta), 3.1W (Tc) Surface Mount SOT-223
Availability: Out of Stock
Package Type: SOT-223
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRFL9014 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

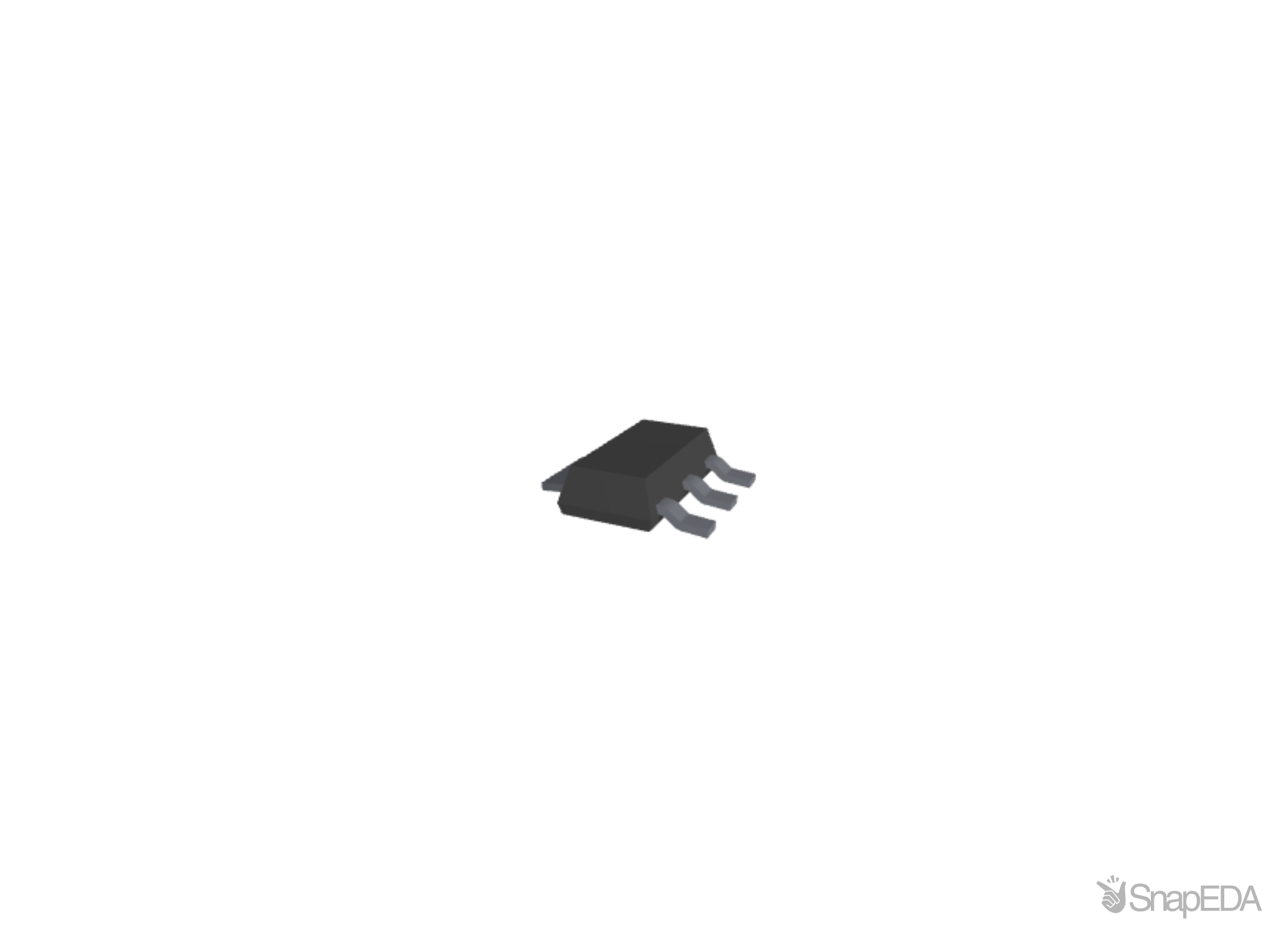

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRFL9014
| Part Name | IRFL9014 |
| Manufacturer | Vishay Siliconix |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Maximum Drain Source Voltage (V) | 60 V |
| Maximum Continuous Drain Current (A) | 1.8 A |
| Mounting Type | Surface Mount |
| Maximum Gate Source Voltage (V) | -20 V, +20 V |
| Maximum Power Dissipation | 2 W |
| Transistor Material | Si |
| Channel Mode | Enhancement |
| Height | 1.45 (mm) |
| Width | 3.7 (mm) |
| Length | 6.7 (mm) |
| Maximum Drain Source Resistance | 500 mΩ |
| Package Type | SOT-223 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Minimum Gate Threshold Voltage (V) | 2 (V) |
| Typical Gate Charge Vgs | 12 nC @ 10 V |
| Channel Type | P |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
| Transistor Configuration | Single |
No issues have been reported for the IRFL9014
