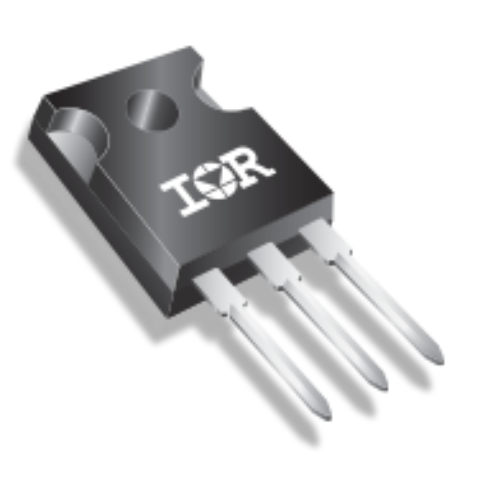

IRFP4768PBF
N-Channel 250 V 93A (Tc) 520W (Tc) Through Hole TO-247AC
Availability: Out of Stock
Package Type: TO-247
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRFP4768PBF by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

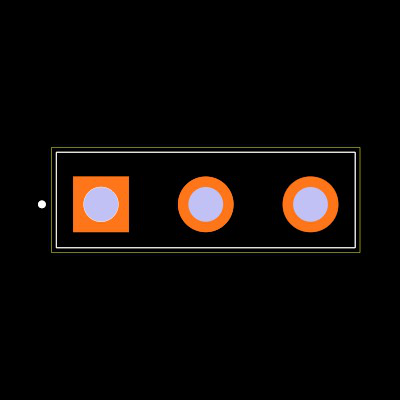

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRFP4768PBF
| Part Name | IRFP4768PBF |
| Manufacturer | Infineon Technologies |
| Life Cycle Status | Part Number Change |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/12v-300v-n-channel-power-mosfet/irfp4768/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Continuous Drain Current (A) | 93 A |
| Transistor Material | Si |
| Width | 5.31 (mm) |
| Transistor Configuration | Single |
| Maximum Drain Source Voltage (V) | 250 V |
| Maximum Gate Threshold Voltage (V) | 5 (V) |
| Package Type | TO-247AC |
| Number Of Elements Per Chip | 1 |
| Minimum Gate Threshold Voltage (V) | 3 (V) |
| Maximum Operating Temperature | +175 °C |
| Channel Type | N |
| Length | 15.87 (mm) |
| Typical Gate Charge Vgs | 180 nC @ 10 V |
| Pin Count | 3 |
| Channel Mode | Enhancement |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 520 W |
| Series | HEXFET |
| Maximum Gate Source Voltage (V) | -20 V, +20 V |
| Height | 20.7 (mm) |
| Minimum Operating Temperature | -55 °C |
| Maximum Drain Source Resistance | 14.5 mΩ |
No issues have been reported for the IRFP4768PBF
