IRFP7430PBF
IRFP7430PBF N-channel MOSFET Transistor, 195 A, 40 V, 3-Pin TO-247AC | Infineon IRFP7430PBF
Availability: In Stock
Package Type: TO-247
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRFP7430PBF by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

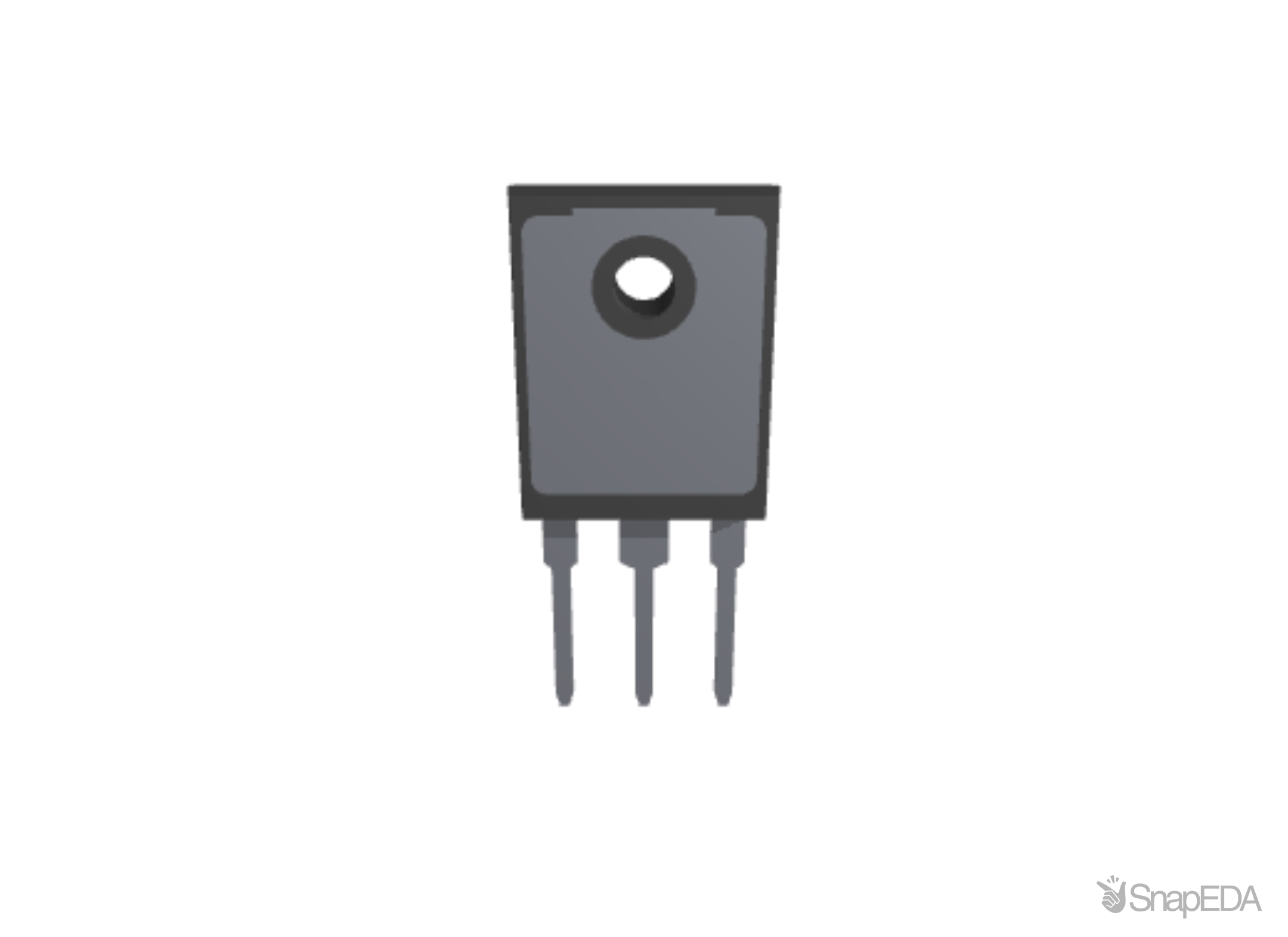

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRFP7430PBF
| Part Name | IRFP7430PBF |
| Manufacturer | Infineon Technologies |
| Category | Electronic Components |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/12v-300v-n-channel-power-mosfet/irfp7430/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Continuous Drain Current (A) | 195 A |
| Transistor Material | Si |
| Width | 5.31 (mm) |
| Distrelec Product Id | 30284055 |
| Transistor Configuration | Single |
| Maximum Drain Source Voltage (V) | 40 V |
| Maximum Gate Threshold Voltage (V) | 3.9 (V) |
| Package Type | TO-247AC |
| Number Of Elements Per Chip | 1 |
| Minimum Gate Threshold Voltage (V) | 2.2 (V) |
| Maximum Operating Temperature | +175 °C |
| Channel Type | N |
| Length | 15.87 (mm) |
| Typical Gate Charge Vgs | 460 nC @ 10 V |
| Pin Count | 3 |
| Mounting Type | Through Hole |
| Channel Mode | Enhancement |
| Maximum Power Dissipation | 366 W |
| Series | StrongIRFET |
| Maximum Gate Source Voltage (V) | -20 V, +20 V |
| Height | 20.7 (mm) |
| Minimum Operating Temperature | -55 °C |
| Maximum Drain Source Resistance | 1.3 mΩ |
Inventory for the IRFP7430PBF by Infineon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
207
|
|
Visit Site | |
|
★ Featured
|
1,063
|
|
Visit Site | |
|
★ Featured
|
3,210
|
240 x $1.47
|
Visit Site | |
| Arrow Europe |
1,914
|
|
Visit Site | |
| Chip One Stop |
2,355
|
1 x $1.54
|
Visit Site | |
| Conrad |
|
|
Visit Site | |
| Farnell UK |
613
|
|
Visit Site | |
| Newark |
916
|
|
Visit Site | |
| RS UK |
94
|
|
Visit Site | |
| Rutronik |
375
|
|
Visit Site | |
| Schukat Electronic |
265
|
|
Visit Site | |
| TME |
47
|
|
Visit Site | |
| Verical |
1,910
|
|
Visit Site | |
| element14 Singapore |
613
|
|
Visit Site |
No issues have been reported for the IRFP7430PBF
