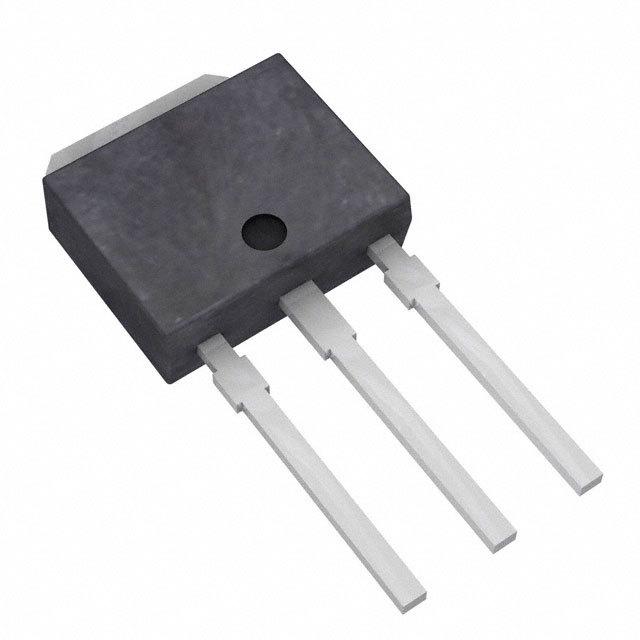

IRFU9310PBF
P-Channel 400 V 1.8A (Tc) 50W (Tc) Through Hole TO-251AA
Availability: In Stock
Package Type: TO-251
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRFU9310PBF by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

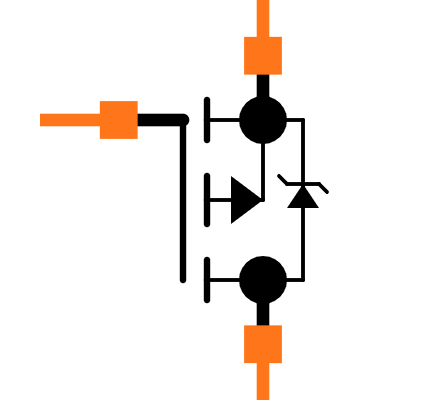

Symbol
No web preview
This Symbol is Available for

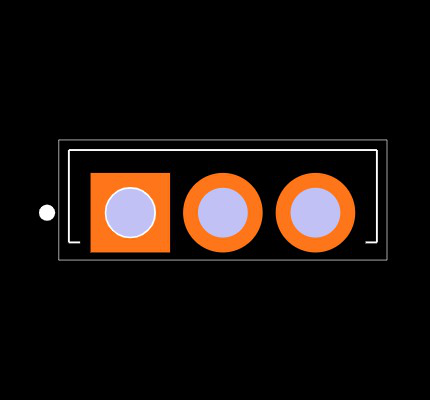

Footprint
No web preview
This Footprint is Available for

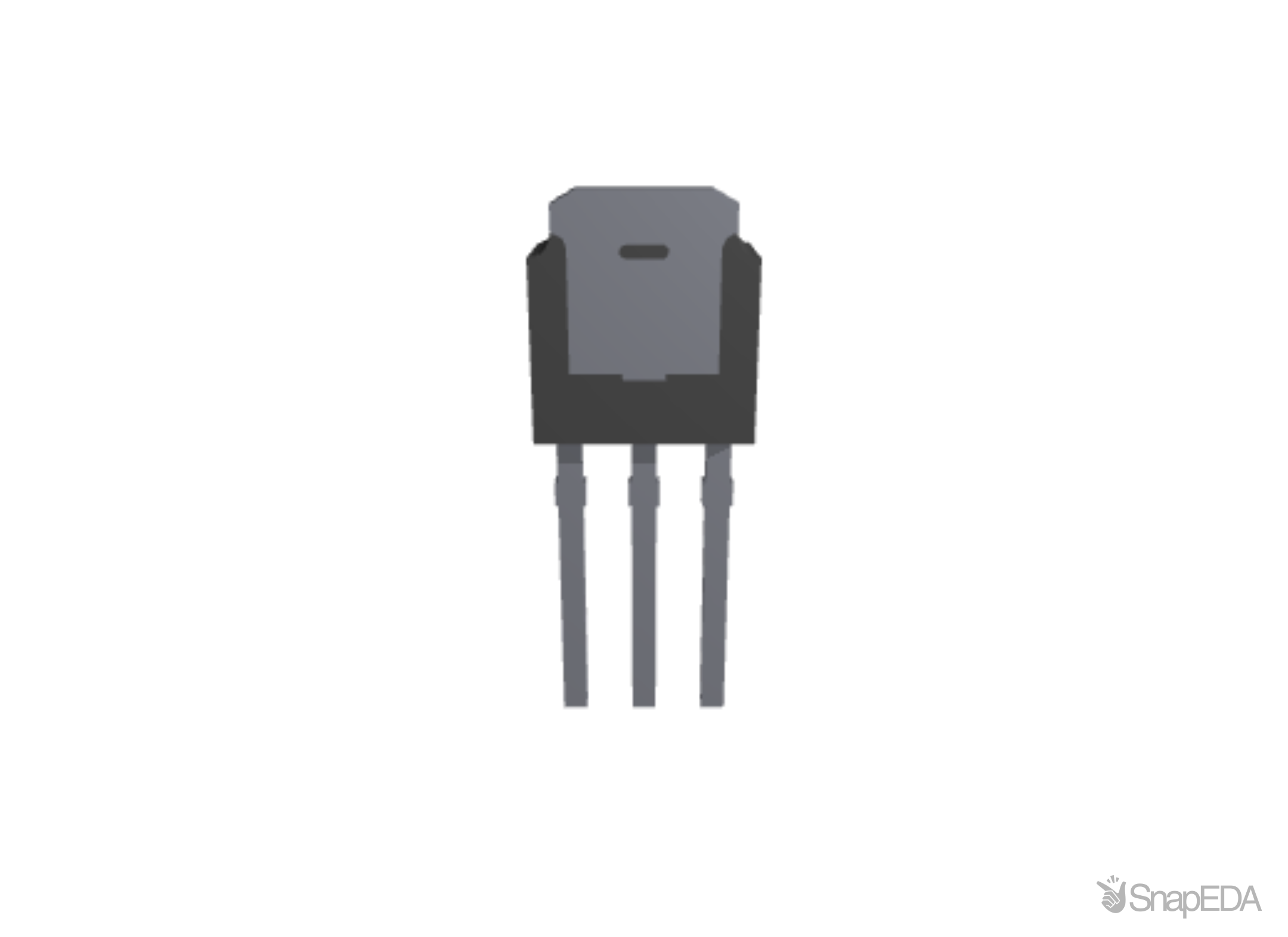

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRFU9310PBF
| Part Name | IRFU9310PBF |
| Manufacturer | Vishay Siliconix |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Pin Count | 3 |
| Maximum Drain Source Voltage (V) | 400 V |
| Width | 2.38 (mm) |
| Maximum Continuous Drain Current (A) | 1.8 A |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 50 W |
| Channel Type | P |
| Maximum Gate Source Voltage (V) | -20 V, +20 V |
| Transistor Material | Si |
| Channel Mode | Enhancement |
| Length | 6.73 (mm) |
| Package Type | IPAK (TO-251) |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Minimum Gate Threshold Voltage (V) | 2 (V) |
| Typical Gate Charge Vgs | 13 nC @ 10 V |
| Height | 6.22 (mm) |
| Maximum Operating Temperature | +150 °C |
| Maximum Drain Source Resistance | 7 Ω |
| Transistor Configuration | Single |
Inventory for the IRFU9310PBF by Vishay from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,467
|
|
Visit Site | |
|
★ Featured
|
6,000
|
640 x $0.47
|
Visit Site | |
| Arrow Europe |
2,668
|
|
Visit Site | |
| Verical |
2,667
|
|
Visit Site |
No issues have been reported for the IRFU9310PBF
