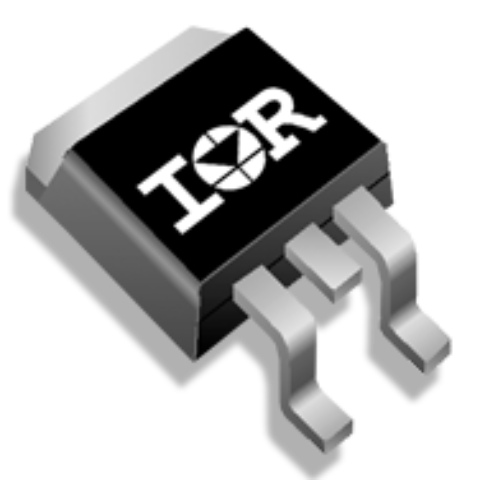

IRFZ34NSTRLPBF
RoHS Compliant | Low RDS(on) | Industry-leading quality | Dynamic dv/dt Rating | Fast Switching | Fully Avalanche Rated | 175C Operating Temperature
Availability: Out of Stock
Package Type: D2PAK
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRFZ34NSTRLPBF by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

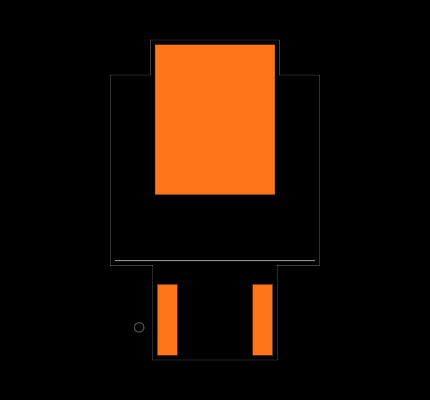

- Symbol and Footprint
- 3D Model

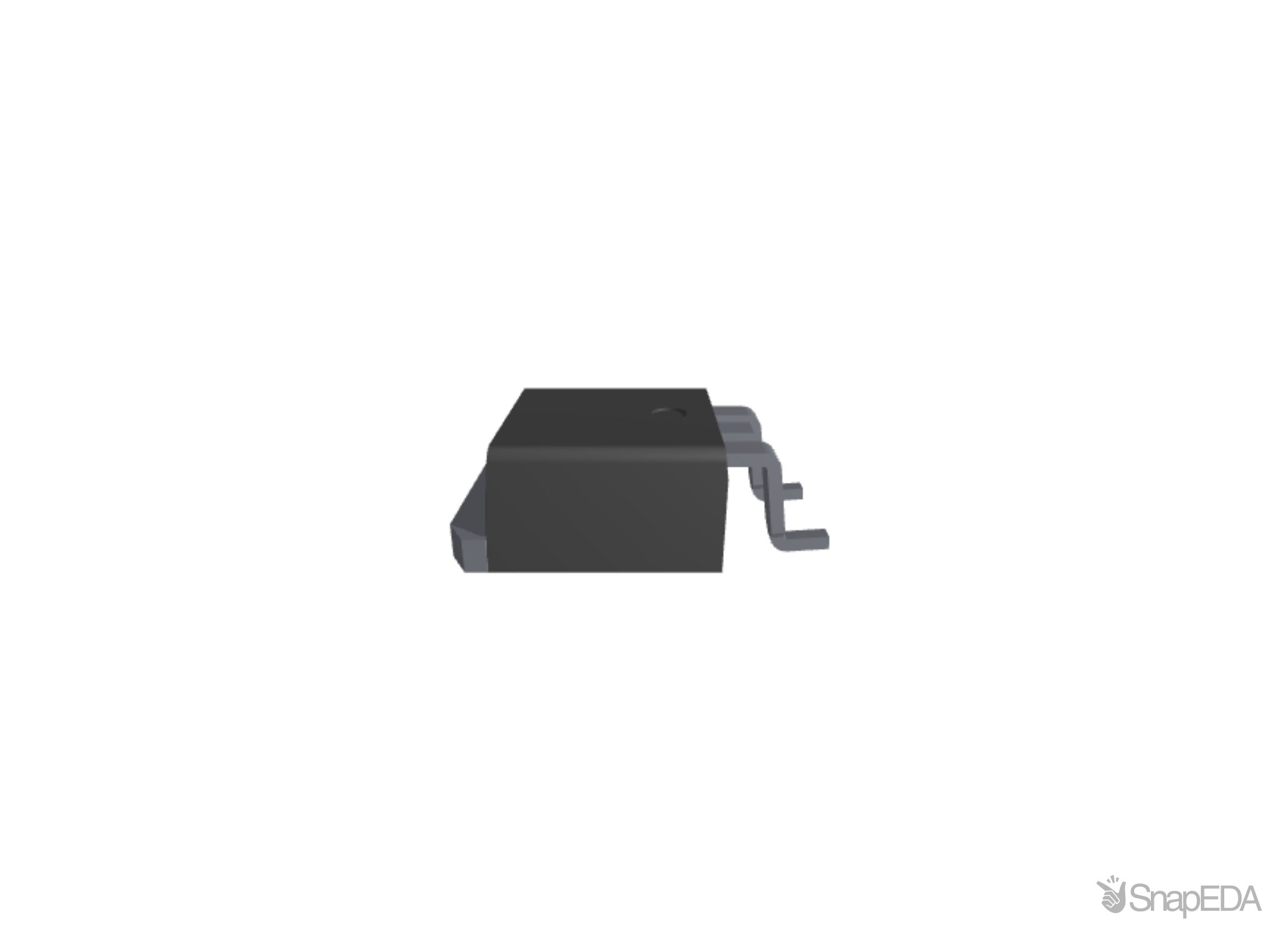

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRFZ34NSTRLPBF
| Part Name | IRFZ34NSTRLPBF |
| Manufacturer | Infineon Technologies |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/12v-300v-n-channel-power-mosfet/irfz34ns/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 55 V |
| Channel Mode | Enhancement |
| Maximum Continuous Drain Current (A) | 29 A |
| Series | HEXFET |
| Channel Type | N |
| Package Type | D2PAK |
| Number Of Elements Per Chip | 2 |
| Mounting Type | Surface Mount |
| Transistor Material | Silicon |
| Pin Count | 3 |
No issues have been reported for the IRFZ34NSTRLPBF
If you experienced any issues with the symbol or footprint, please report it.
