IRG4PC50UD-EPBF
IGBT, 600V, 55A, TO-247AC; Transistor Type:IGBT; DC Collector Current:55A; Collector Emitter Voltage Vces:2V; Power Dissipation Pd:200W; Collector Emitter Voltage V(br)ceo:600V; Operating Temperature Range:-55°C to +150°C; Transistor Case Style:TO-247AC; No. of Pins:3; SVHC:No SVHC (19-Dec-2011); Current Ic Continuous a Max:55A; Current Temperature:25°C; Device Marking:IRG4PC50UD; Fall Time Max:110ns; Full Power Rating Temperature:25°C; No. of Transistors:1; Package / Case:TO-247AC; Power Dissipation Max:200W; Power Dissipation Pd:200W; Power Dissipation Pd:200W; Pulsed Current Icm:220A; Rise Time:25ns; Termination Type:Through Hole; Transistor Polarity:N Channel; Voltage Vces:600V
Availability: Out of Stock
Package Type: TO-247
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRG4PC50UD-EPBF by International Rectifier and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

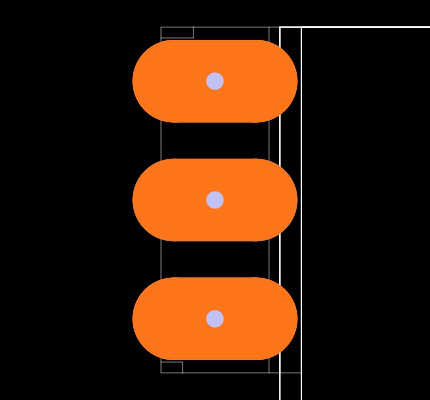

Footprint
No web preview
This Footprint is Available for

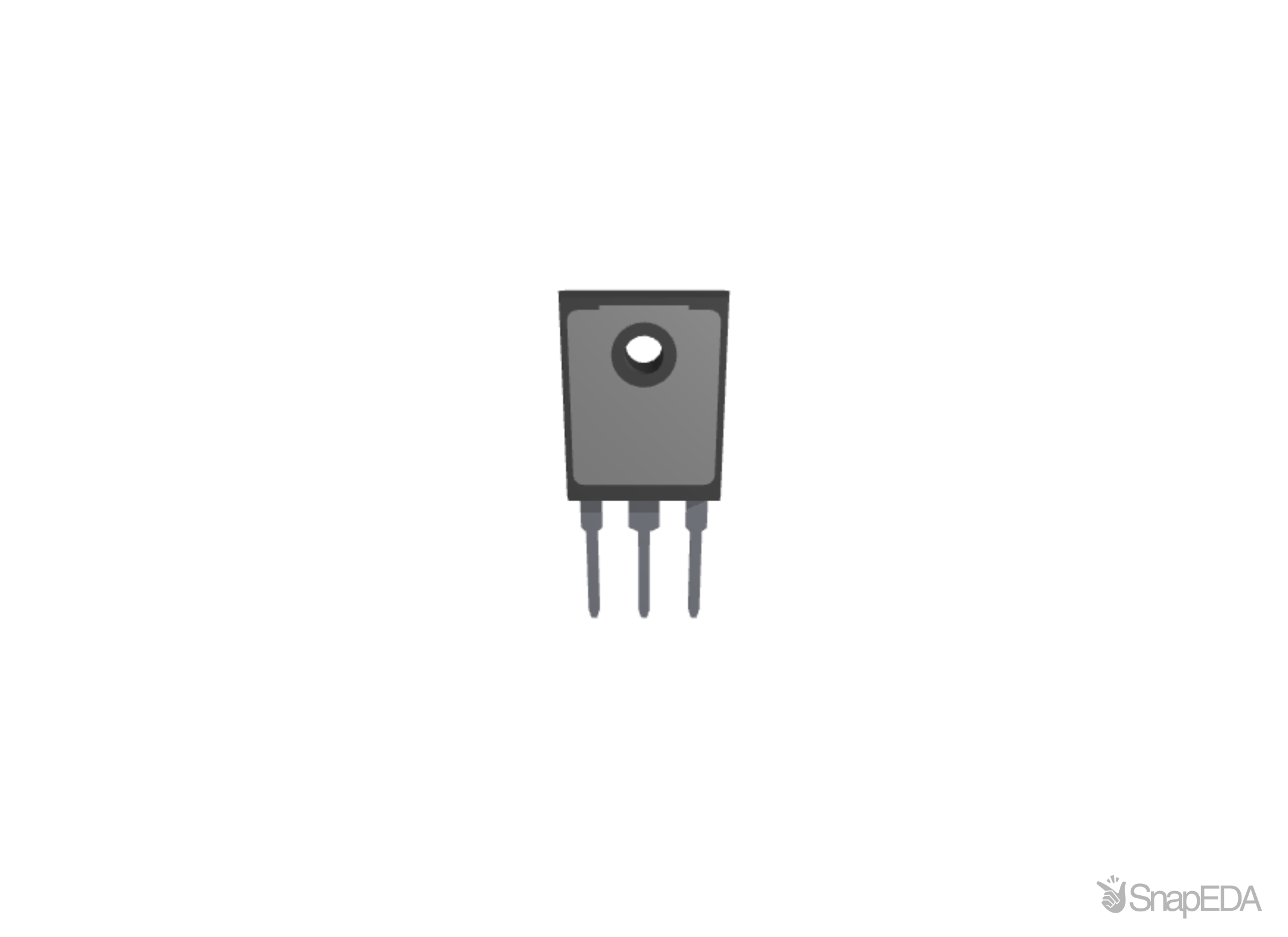

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRG4PC50UD-EPBF
| Part Name | IRG4PC50UD-EPBF |
| Manufacturer | International Rectifier |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
No issues have been reported for the IRG4PC50UD-EPBF
