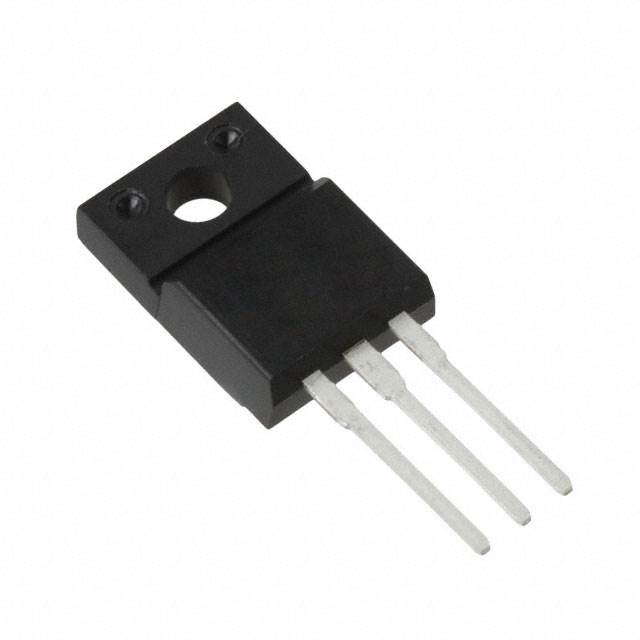

IRLIZ44N
MOSFET N-CH 55V 30A TO220FP
Availability: Out of Stock
Package Type: TO-220
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRLIZ44N by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRLIZ44N
| Part Name | IRLIZ44N |
| Manufacturer | Infineon |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Maximum Continuous Drain Current (A) | 30 A |
| Transistor Material | Si |
| Width | 4.83 (mm) |
| Transistor Configuration | Single |
| Maximum Drain Source Voltage (V) | 55 V |
| Maximum Gate Threshold Voltage (V) | 2 (V) |
| Package Type | TO-220 |
| Number Of Elements Per Chip | 1 |
| Minimum Gate Threshold Voltage (V) | 1 (V) |
| Maximum Operating Temperature | +175 °C |
| Channel Type | N |
| Length | 10.75 (mm) |
| Typical Gate Charge Vgs | 48 nC @ 5 V |
| Pin Count | 3 |
| Channel Mode | Enhancement |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 45 W |
| Series | HEXFET |
| Maximum Gate Source Voltage (V) | -16 V, +16 V |
| Height | 9.8 (mm) |
| Minimum Operating Temperature | -55 °C |
| Maximum Drain Source Resistance | 22 mΩ |
