IRLL2705
N-Channel 55 V 3.8A (Ta) 1W (Ta) Surface Mount SOT-223
Availability: Out of Stock
Package Type: SOT-223
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRLL2705 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

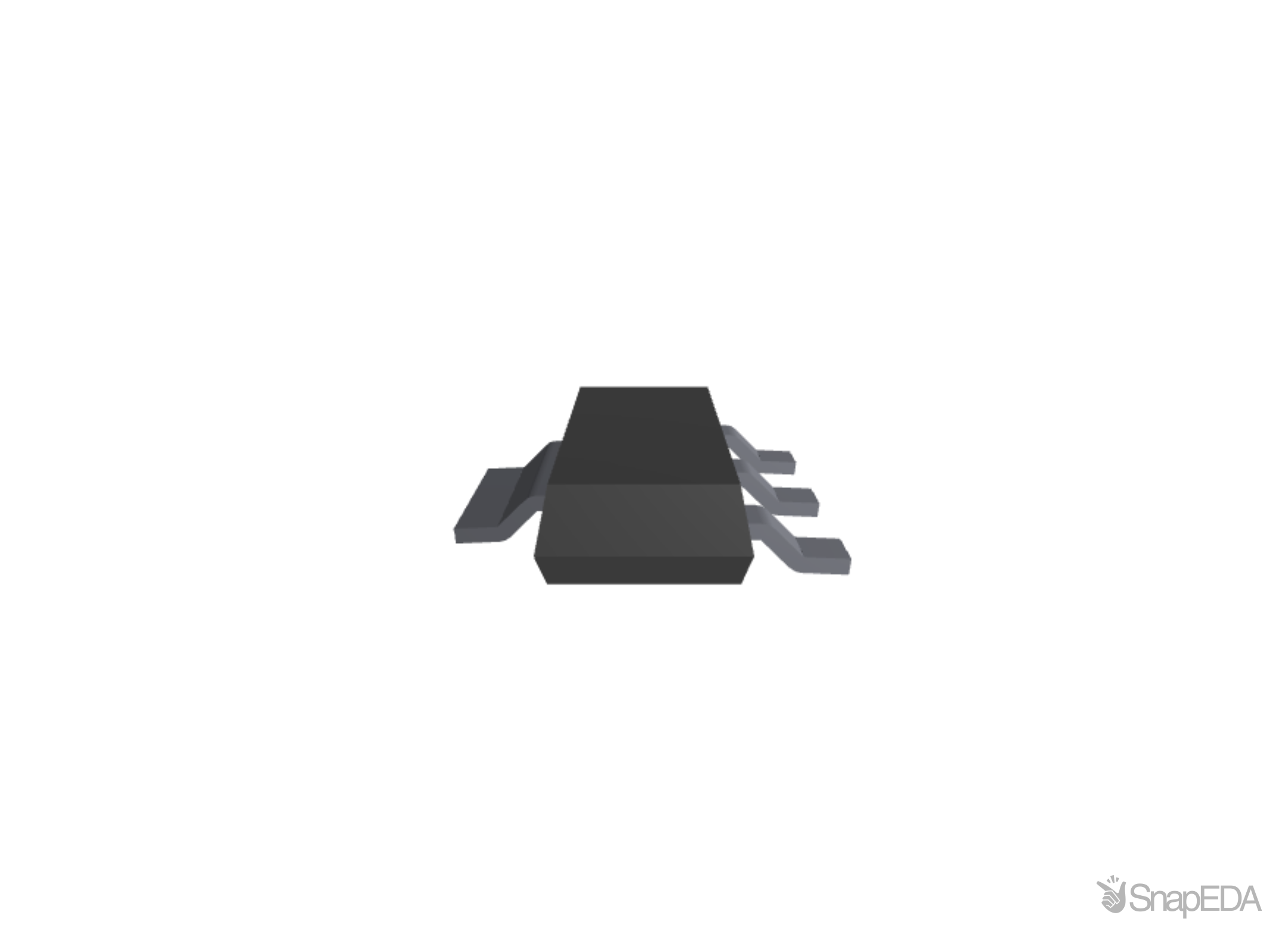

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRLL2705
| Part Name | IRLL2705 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Continuous Drain Current (A) | 5.2 A |
| Transistor Material | Si |
| Width | 3.7 (mm) |
| Transistor Configuration | Single |
| Maximum Drain Source Voltage (V) | 55 V |
| Maximum Gate Threshold Voltage (V) | 2 (V) |
| Package Type | SOT-223 |
| Number Of Elements Per Chip | 1 |
| Minimum Gate Threshold Voltage (V) | 1 (V) |
| Maximum Operating Temperature | +150 °C |
| Channel Type | N |
| Length | 6.7 (mm) |
| Typical Gate Charge Vgs | 32 nC @ 10 V |
| Pin Count | 3 |
| Channel Mode | Enhancement |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 2.1 W |
| Series | HEXFET |
| Maximum Gate Source Voltage (V) | -16 V, +16 V |
| Height | 1.739 (mm) |
| Minimum Operating Temperature | -55 °C |
| Maximum Drain Source Resistance | 65 mΩ |
