IRLML2246TRPBF
IRLML2246TRPBF P-channel MOSFET Transistor, 2.6 A, 20 V, 3-Pin SOT-23 | Infineon IRLML2246TRPBF
Availability: Out of Stock
Package Type: SOT-23-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRLML2246TRPBF by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

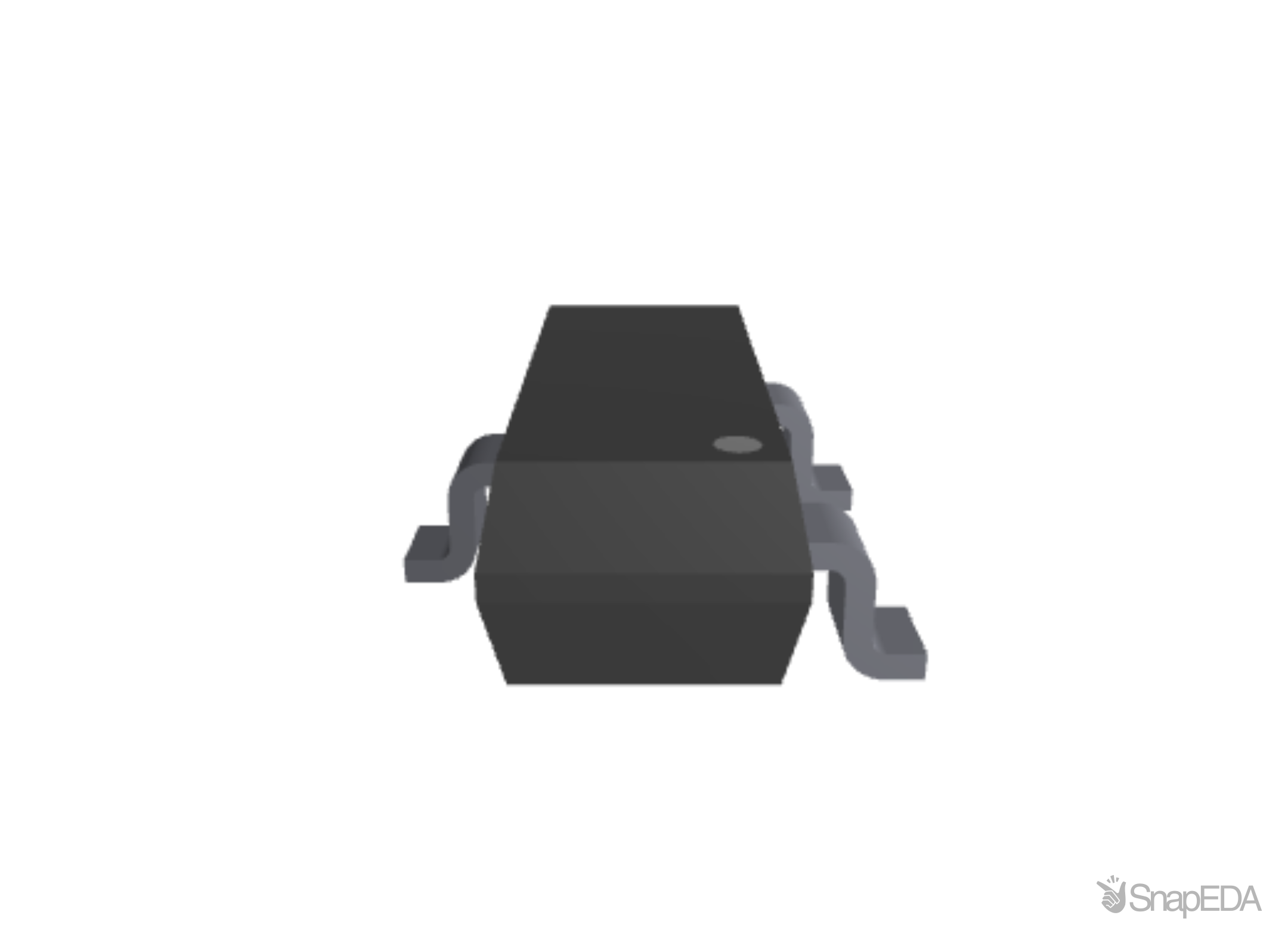

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRLML2246TRPBF
| Part Name | IRLML2246TRPBF |
| Manufacturer | Infineon |
| Category | Electronic Components |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/12v-300v-n-channel-power-mosfet/irlml2246/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Continuous Drain Current (A) | 2.6 A |
| Transistor Material | Si |
| Width | 1.4 (mm) |
| Transistor Configuration | Single |
| Maximum Drain Source Voltage (V) | 20 V |
| Maximum Gate Threshold Voltage (V) | 1.1 (V) |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 1 |
| Minimum Gate Threshold Voltage (V) | 0.4 (V) |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 2.9 nC @ 4.5 V |
| Channel Type | P |
| Length | 3.04 (mm) |
| Pin Count | 3 |
| Channel Mode | Enhancement |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1.3 W |
| Series | HEXFET |
| Maximum Gate Source Voltage (V) | -12 V, +12 V |
| Height | 1.02 (mm) |
| Minimum Operating Temperature | -55 °C |
| Maximum Drain Source Resistance | 236 mΩ |
No issues have been reported for the IRLML2246TRPBF
If you experienced any issues with the symbol or footprint, please report it.
