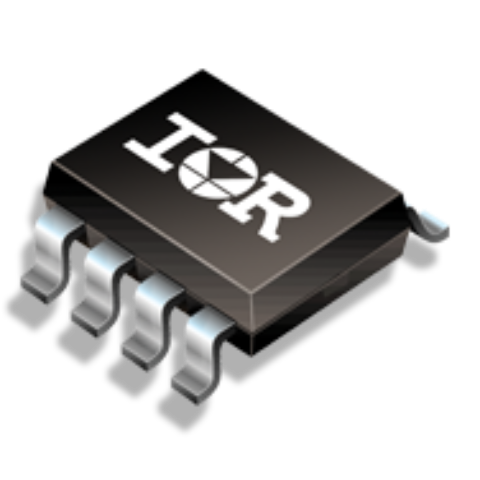

IRS2005STRPBF
Floating gate driver designed for bootstrap operation | Fully operational to +200 V | Gate drive supply range up to 20 V per channel | Undervoltage lockout for VCC, VBS | 3.3 V, 5 V, and 15 V logic input compatible | Tolerant to negative transient voltage | Matched propagation delay | Designed for use with bootstrap power supplies | Output in phase with the Inputs | -40C to 125C operating range
Availability: Out of Stock
Package Type: SOIC-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRS2005STRPBF by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRS2005STRPBF
| Part Name | IRS2005STRPBF |
| Manufacturer | Infineon |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/gate-driver-ics/irs2005s/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Logic Type | CMOS, LSTTL |
| Package Type | SOIC |
| Pin Count | 8 |
| Fall Time | 30 (ns) |
No issues have been reported for the IRS2005STRPBF
