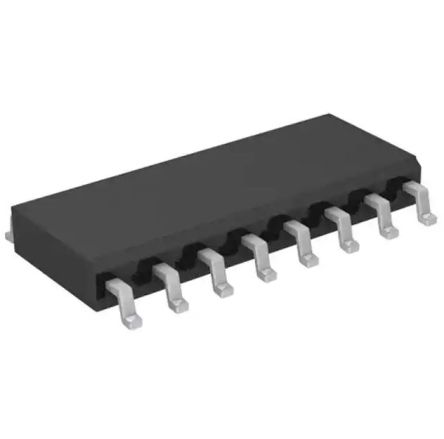

IRS20957STRPBF
Protected Digital Audio Driver with Floating PWM input in a 16-Lead SOIC Narrow Package
Availability: Out of Stock
Package Type: SO-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRS20957STRPBF by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRS20957STRPBF
| Part Name | IRS20957STRPBF |
| Manufacturer | Infineon |
| Product Link | https://www.infineon.com/cms/en/product/power/class-d-audio-amplifier-solutions/discrete-class-d-audio-amplifier-ics/irs20957spbf/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Amplifier Class | Class D |
| Maximum Power | 500 (W) |
| Dimensions | 9.98 x 3.99 x 1.75 (mm) |
| Mounting Type | Surface Mount |
| Power Supply Type | Analogue |
| Application | Home Sound System, Speaker, Television |
| Typical Single Supply Voltage (V) | 15 V |
| Package Type | PG-DSO |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Class-D |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 16 |
No issues have been reported for the IRS20957STRPBF
