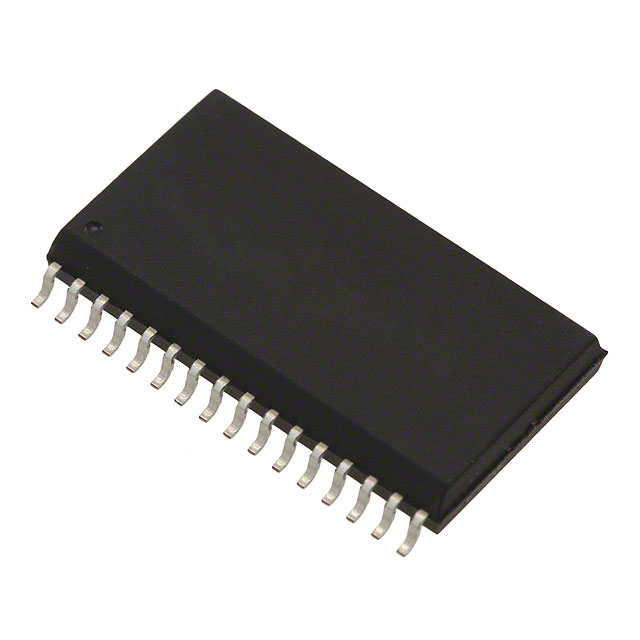

IS62C1024AL-35QLI
SRAM - Asynchronous Memory IC 1Mb (128K x 8) Parallel 35 ns 32-SOP
Availability: In Stock
Package Type: SOP-32
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IS62C1024AL-35QLI by ISSI and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

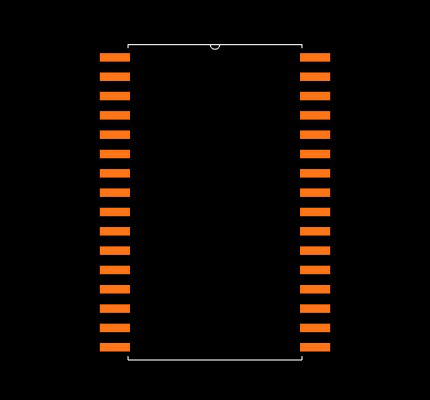

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IS62C1024AL-35QLI
| Part Name | IS62C1024AL-35QLI |
| Manufacturer | ISSI, Integrated |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Pin Count | 32 |
| Number Of Words | 128 (k) |
| Low Power | Yes |
| Dimensions | 20.75 x 11.43 x 3 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Width | 11.43 (mm) |
| Organisation | 128k x 8 bit |
| Minimum Operating Supply Voltage (V) | 4.5 V |
| Number Of Bits Per Word | 8 (bit) |
| Height | 3 (mm) |
| Timing Type | Asynchronous |
| Length | 20.75 (mm) |
| Memory Size | 1 (Mbit) |
| Package Type | SOP |
| Address Bus Width | 17 (bit) |
| Maximum Random Access Time | 35 (ns) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
Inventory for the IS62C1024AL-35QLI by ISSI from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,958
|
|
Visit Site | |
|
★ Featured
|
12,191
|
208 x $1.67
|
Visit Site | |
| Arrow Europe |
1,338
|
|
Visit Site | |
| Verical |
1,300
|
|
Visit Site |
No issues have been reported for the IS62C1024AL-35QLI
