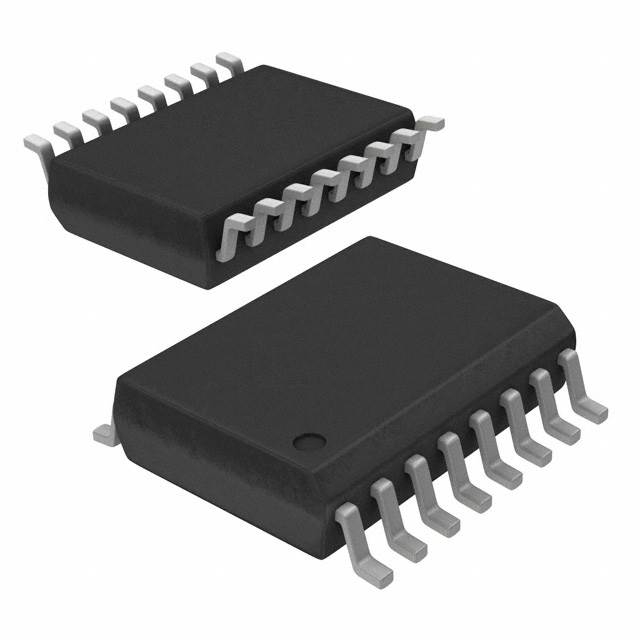

ISO7820FDW
High voltage, reinforced 2-channel, 2/0, digital isolator with 2000VRMS VIOWM and 14.5mm creepage
Availability: In Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ISO7820FDW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ISO7820FDW
| Part Name | ISO7820FDW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Isolation Voltage (V) | 5.7 kVrms |
| Maximum Data Rate | 100 (Mbit/s) |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Maximum Operating Temperature | +125 (°C) |
| Depth | 2.35 (mm) |
| Width | 7.6 (mm) |
| Length | 10.5 (mm) |
| Number Of Channels | 2 |
| Minimum Operating Temperature | -55 (°C) |
| Number Of Pins | 16 |
| Rise Time | 3 ns @ 3.3 V, 3.5 ns @ 2.5 V, 3.9 ns @ 5 V |
| Maximum Input Current (A) | 11.5 mA @ 3.3 V, 15.3 mA @ 5 V, 4.4 mA @ 9.1 V |
Inventory for the ISO7820FDW by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
376
|
|
Visit Site | |
|
★ Featured
|
131
|
|
Visit Site | |
|
★ Featured
|
3,000
|
111 x $3.04
|
Visit Site | |
| Arrow Europe |
160
|
40 x $3.88
|
Visit Site | |
| Texas Instruments |
15,222
|
|
Visit Site |
No issues have been reported for the ISO7820FDW
