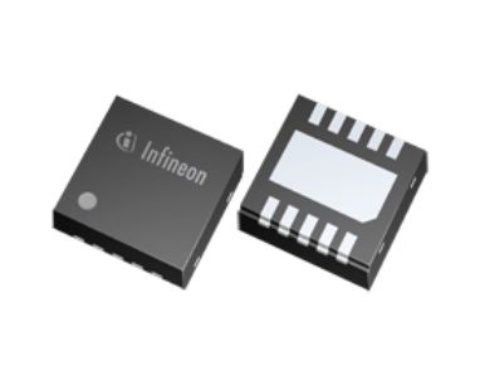

ITS42K5D-LD-F

Name: ITS42K5D-LD-F
Brand: Infineon

Two channel power PMOS high-side switch for small loads | Output current capability: up to 250mA per channel | Integrated freewheeling diode | Wide operating voltage range: 4.5V to 42V | 3.3V and 5V compatible logic inputs | Very low quiescent current in OFF state | High current limit accuracy | Optimized EMC behavior | Overload, short circuit, open load and overtemperature diagnosis | ESD, short circuit, safe operation area and overtemperature protection | Undervoltage lockout (UVLO) | Green and robust product (RoHS compliant)

Availability: Out of Stock

Package Type: TFDFN-10

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the ITS42K5D-LD-F by Infineon and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the ITS42K5D-LD-F

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the ITS42K5D-LD-F

Part Name	ITS42K5D-LD-F
Manufacturer	Infineon
Product Link	https://www.infineon.com/cms/en/product/power/smart-low-side-high-side-switches/industrial-high-side-switch/its42k5d-ld-f/
RoHS	True
Life Cycle Status	Not Recommended for New Designs
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Maximum Operating Current (A)	250 (mA)
Power Switch Type	High Side
Maximum Operating Supply Voltage (V)	42 V
Number Of Outputs	2
Number Of Channels	2
Power Switch Topology	High Side
Switch On Resistance	8 (Ω)

We could not find inventory or pricing across major distributors for the ITS42K5D-LD-F by Infineon.
