ITX1224SA

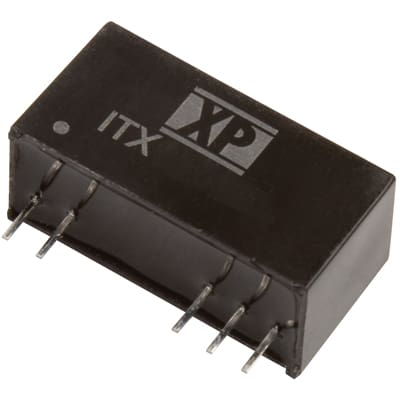

DC-DC Converter, 6W, 2:1 INPUT, SIP | XP Power ITX1224SA
Availability: In Stock
Package Type: SIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ITX1224SA by XP Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ITX1224SA
| Part Name | ITX1224SA |
| Manufacturer | XP Power |
| Category | Power Products |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Load Regulation | ±1 (%) |
| Number Of Outputs | 1 |
| Maximum Temperature | +90 (°C) |
| Output Current (A) | 250 (mA) |
| Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F |
| Mounting Type | Through Hole |
| Package | SIP 8 |
| Series | ITX |
| Input Voltage Range (V) | 9 → 18 V dc |
| Isolated | Yes |
| Width | 9.2 (mm) |
| Depth | 11.1 (mm) |
| Isolation Voltage (V) | 1.5 (kV dc) |
| Length | 21.85 (mm) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 12 V dc |
| Efficiency | 84 (%) |
| Output Voltage (V) | 24 (V dc) |
| Power Rating | 6 (W) |
