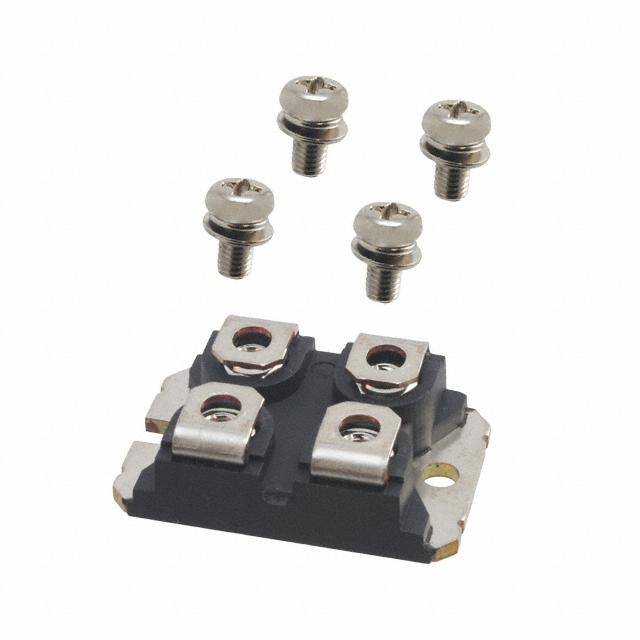

IXFN360N15T2
N-Channel 150 V 310A (Tc) 1070W (Tc) Chassis Mount SOT-227B
Availability: In Stock
Package Type: SOT-227
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IXFN360N15T2 by IXYS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

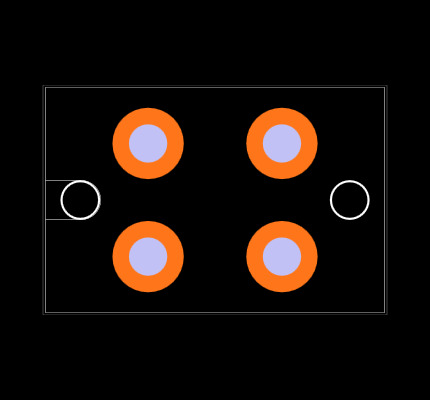

Footprint
No web preview
This Footprint is Available for

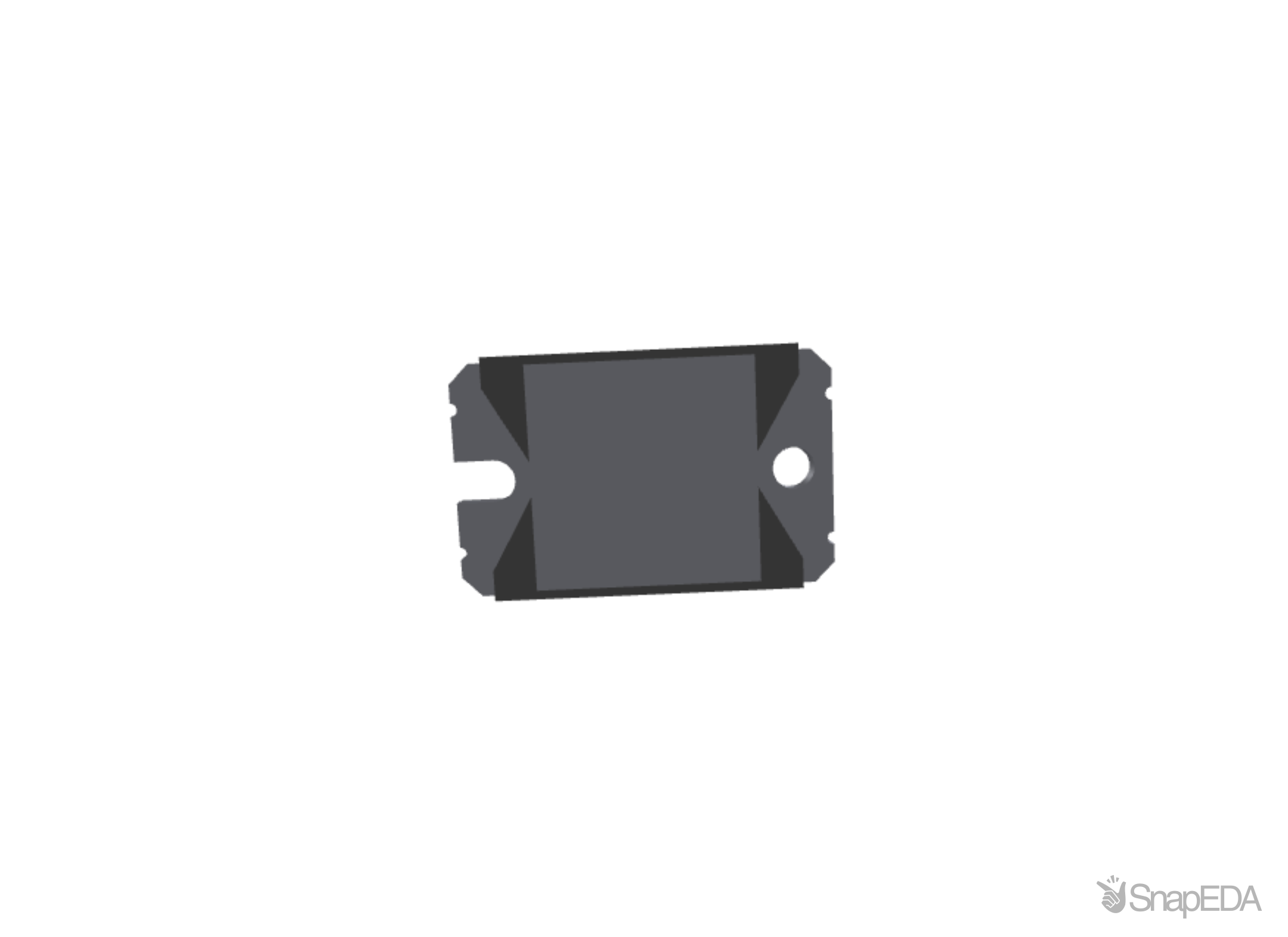

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IXFN360N15T2
| Part Name | IXFN360N15T2 |
| Manufacturer | IXYS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 150 V |
| Width | 25.07 (mm) |
| Maximum Continuous Drain Current (A) | 310 A |
| Mounting Type | Screw Mount |
| Maximum Gate Source Voltage (V) | -20 V, +20 V |
| Series | GigaMOS TrenchT2 HiperFET |
| Maximum Power Dissipation | 1.07 kW |
| Length | 38.23 (mm) |
| Height | 9.6 (mm) |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage (V) | 5 (V) |
| Maximum Drain Source Resistance | 4 mΩ |
| Typical Gate Charge Vgs | 715 nC @ 10 V |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage (V) | 1.2 (V) |
| Minimum Gate Threshold Voltage (V) | 2.5 (V) |
| Package Type | SOT-227 |
| Channel Type | N |
| Maximum Operating Temperature | +175 °C |
| Pin Count | 4 |
Inventory for the IXFN360N15T2 by IXYS from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
168
|
|
Visit Site | |
|
★ Featured
|
102
|
|
Visit Site | |
|
★ Featured
|
390
|
11 x $28.80
|
Visit Site |
No issues have been reported for the IXFN360N15T2
