JCA0305D03

Name: JCA0305D03
Brand: XP Power

DC-DC Converter, +/-15V 3W | XP Power JCA0305D03

Availability: In Stock

Package Type: DIP-24

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the JCA0305D03 by XP Power and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

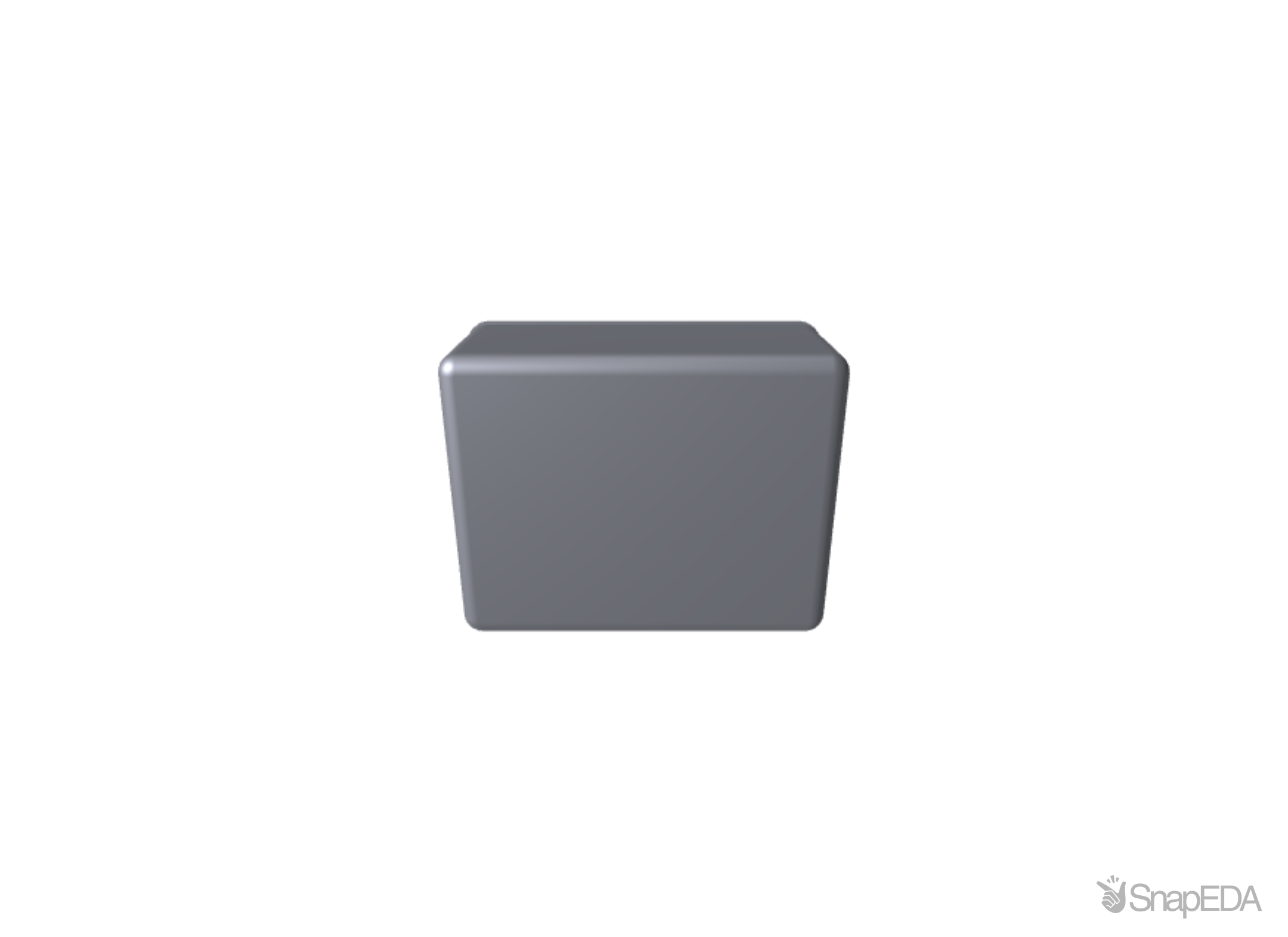

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the JCA0305D03

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the JCA0305D03

Part Name	JCA0305D03
Manufacturer	XP Power
Category	Power Products
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Load Regulation	±1 (%)
Number Of Outputs	2
Maximum Temperature	+100 (°C)
Output Current (A)	±100 (mA)
Standards Met	CE LVD, CSA C22.2 No. 60950-1-03, EN 55022, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, TUV, UL, UL 60950-1
Mounting Type	Through Hole
Package	DIP 24
Series	JCA
Input Voltage Range (V)	4.5 → 9 V dc
Isolated	Yes
Width	20.3 (mm)
Depth	10 (mm)
Isolation Voltage (V)	1.5 (kV dc)
Length	25.4 (mm)
Minimum Temperature	-40 (°C)
Input Voltage Nominal (V)	5 V dc
Efficiency	73 (%)
Output Voltage (V)	±15 (V dc)
Power Rating	3 (W)

Inventory for the JCA0305D03 by XP Power from major distributors.

Supplier	Quantity	Price	Purchase
★ Featured	31			Visit Site
