JCD0624D15

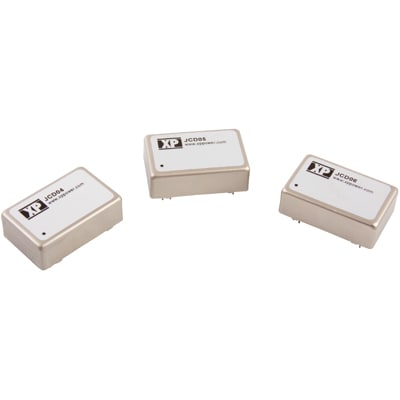

DC-DC Converter, 6W, 2:1, DIP24 | XP Power JCD0624D15
Availability: In Stock
Package Type: DIP-24
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the JCD0624D15 by XP Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

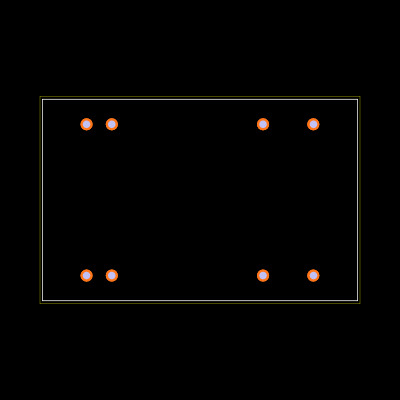

Footprint
No web preview
This Footprint is Available for

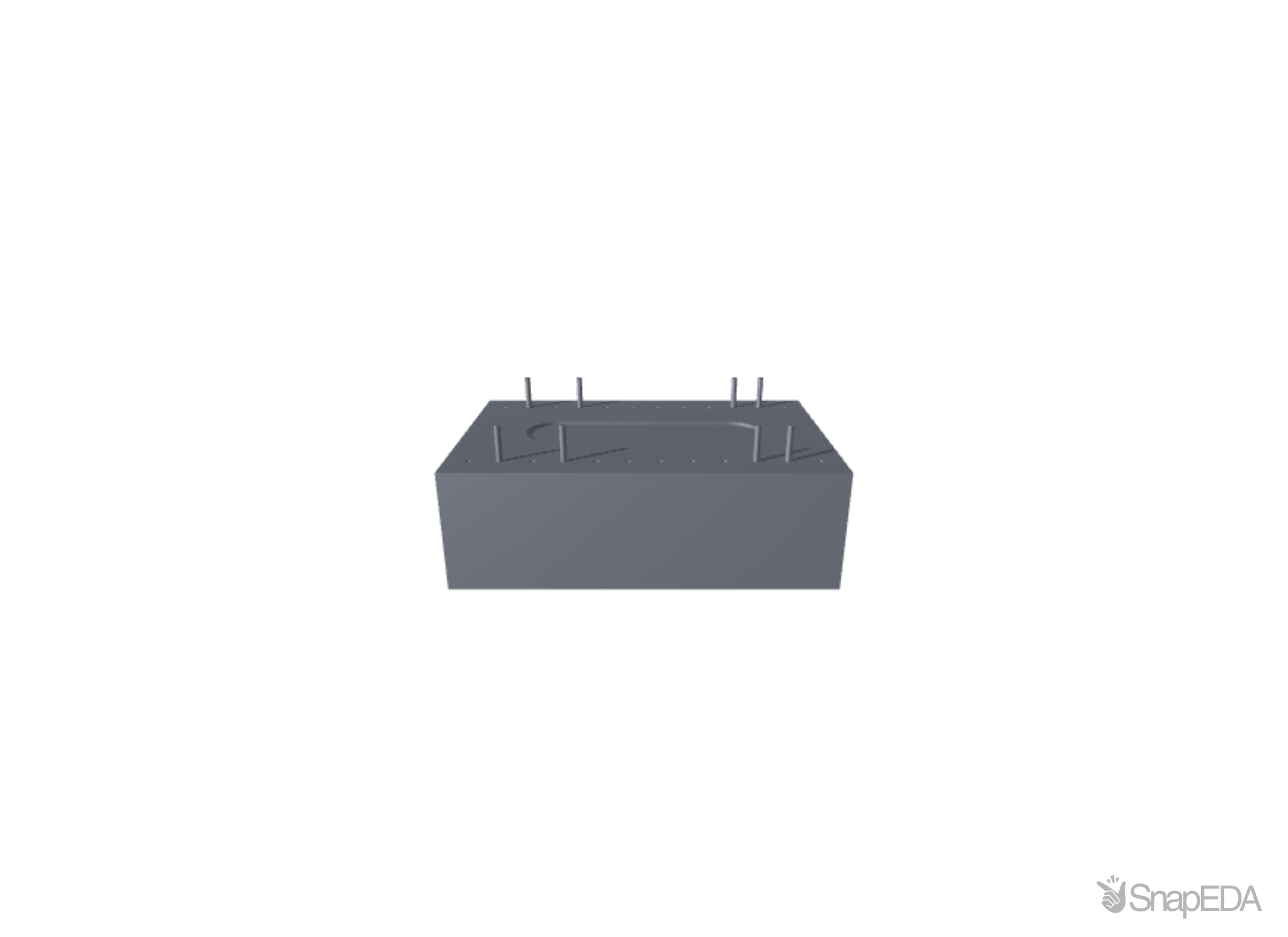

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the JCD0624D15
| Part Name | JCD0624D15 |
| Manufacturer | XP Power |
| Category | Power Products |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Load Regulation | ±0.5 (%) |
| Number Of Outputs | 2 |
| Output Voltage Adjustment Range (V) | ±14.85 V dc, ±15.15 (V dc) |
| Maximum Temperature | +100 (°C) |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-217F |
| Mounting Type | Through Hole |
| Package | DIP 24 |
| Series | JCD |
| Input Voltage Range (V) | 18 → 36 V dc |
| Isolated | Yes |
| Width | 20.32 (mm) |
| Depth | 10.4 (mm) |
| Isolation Voltage (V) | 1.6 (kV dc) |
| Length | 31.75 (mm) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 24 V dc |
| Power Rating | 6 (W) |
| Output Voltage (V) | ±15 (V dc) |
| Output Current (A) | ±200 (mA) |
Inventory for the JCD0624D15 by XP Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
10
|
|
Visit Site | |
| Mouser |
|
|
Visit Site |
No issues have been reported for the JCD0624D15
