JCK3024S05

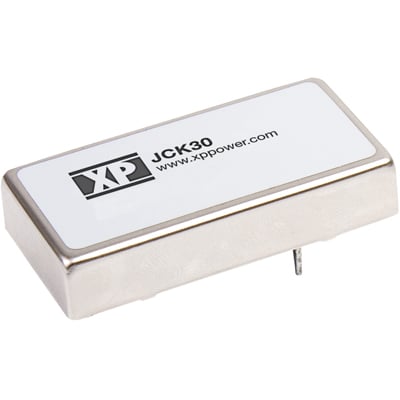

DC-DC Converter, 30W, Single Output | XP Power JCK3024S05
Availability: In Stock
Package Type: DIP-6
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the JCK3024S05 by XP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the JCK3024S05
| Part Name | JCK3024S05 |
| Manufacturer | XP Power |
| Category | Power Products |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Load Regulation | ±0.5 (%) |
| Number Of Outputs | 1 |
| Maximum Temperature | +75 (°C) |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
| Mounting Type | Through Hole |
| Package | 2 x 1 in |
| Series | JCK |
| Input Voltage Range (V) | 18 → 36 V dc |
| Isolated | Yes |
| Width | 25.4 (mm) |
| Depth | 10.16 (mm) |
| Isolation Voltage (V) | 1.6 (kV dc) |
| Length | 50.8 (mm) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 24 V dc |
| Power Rating | 30 (W) |
| Output Voltage (V) | 5 (V dc) |
| Output Current (A) | 6 (A) |
Inventory for the JCK3024S05 by XP from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
59
|
|
Visit Site | |
| Farnell UK |
|
|
Visit Site | |
| Newark |
|
|
Visit Site | |
| RS UK |
5
|
|
Visit Site | |
| TME |
92
|
|
Visit Site | |
| TRC Electronics |
|
|
Visit Site | |
| Verical |
100
|
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the JCK3024S05
