JDS9-1Y
Relay SSR 15mA 32V DC-IN 2A 250V AC-OUT 4-Pin Metal DIP w/CERTS
Availability: Out of Stock
Package Type: DIP-14
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the JDS9-1Y by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

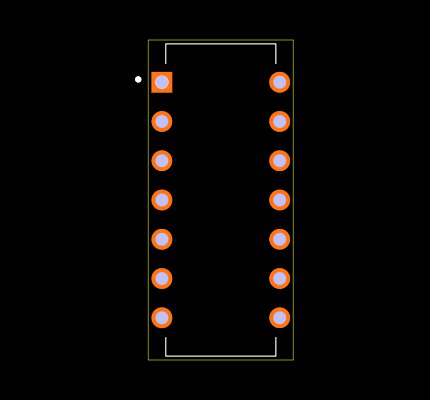

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the JDS9-1Y
| Part Name | JDS9-1Y |
| Manufacturer | TE Connectivity |
| Insulation Initial Dielectric Between Contacts & Coil | 1500 |
| Vibration | 20G's, 10 – 2000Hz |
| Screening Level | Y |
| Contact Switching Voltage (Max) (V) | 250 |
| Contact Arrangement | 1 Form A (NO) |
| TE Internal Number | 1-1617069-1 |
| Output Type | DC |
| Input Voltage (V) | 3.8 – 32 |
| Output Voltage Rating (AC Relays) (V) | 250 |
| Packaging Style | DIP |
| Terminal Type | PCB-THT |
| Relay Mounting Type | Printed Circuit Board |
| Operating Temperature Range | -55 – 110 |
| Coil Voltage Rating (V) | 3.8 |
| Output Current Rating (A) | 2 |
| Shock | 1500G's, .5ms |
| Packaging Method | Tray/Box |
| Power Relay Type | Solid State |
| Enclosure Type | Hermetically Sealed |
| Actuating System | AC |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Contact Current Rating (Max) (A) | 1 |
| Relay Termination Type | Through Hole |
| Contact Voltage Rating (V) | 250 |
