JMK325B7476KM-PR

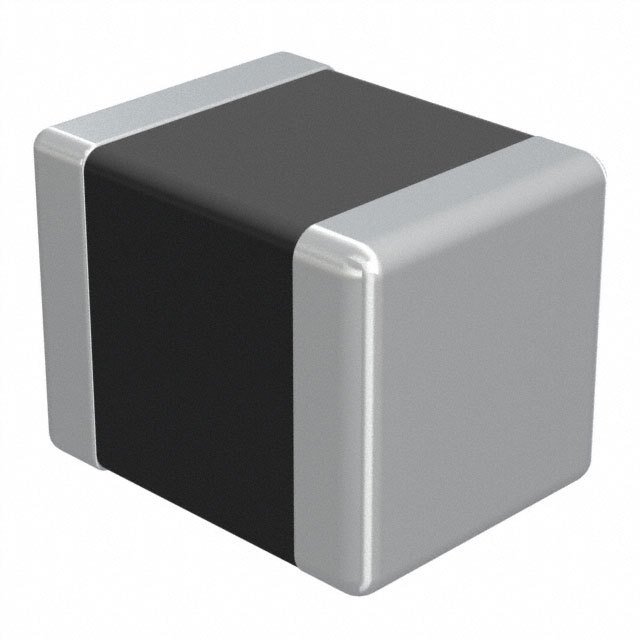

47 µF ±10% 6.3V Ceramic Capacitor X7R 1210 (3225 Metric)
Availability: In Stock
Package Type: 3225
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the JMK325B7476KM-PR by Taiyo Yuden and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the JMK325B7476KM-PR
| Part Name | JMK325B7476KM-PR |
| Manufacturer | Taiyo Yuden |
| CapacitanceTolerance(%) | [10, -10] |
| Capacitance(pF) | 47000000.0 |
| Series | M |
| RatedVoltage(V) (V) | 6.3 |
| TemperatureCoefficient | X7R |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3.2 x 2.5 x 2.5 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 1210 (3225M) |
| Series | M |
| Depth | 2.5 (mm) |
| Height | 2.5 (mm) |
| Capacitance | 47 (µF) |
| Length | 3.2 (mm) |
| Voltage (V) | 6.3 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±10 (%) |
| Terminal Type | Solder |
| Dielectric | X7R |
