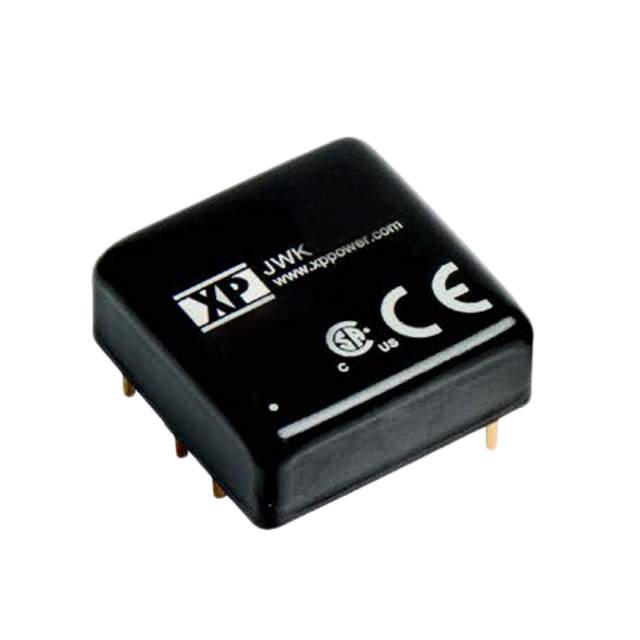

JSM1024D15

Name: JSM1024D15
Brand: XP Power

DC-DC Converter, Thru Hole, DIP, 10W, 15V@333mA, 333mA, 18-36V In, JSM10 Series | XP Power JSM1024D15

Availability: Out of Stock

Package Type: DIP-6

CAD Models: Symbol and Footprint

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the JSM1024D15 by XP Power and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

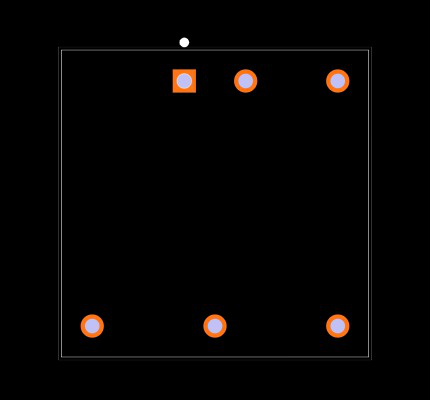

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the JSM1024D15

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the JSM1024D15

Part Name	JSM1024D15
Manufacturer	XP Power
Category	Electronic Components
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Load Regulation	±1 (%)
Number Of Outputs	2
Output Voltage Adjustment Range (V)	±14.7 V dc, ±15.3 (V dc)
Maximum Temperature	+100 (°C)
Standards Met	EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60950-1, ITE Safety Approvals, MIL-HDBK-217F, UL/cUL60950-1
Mounting Type	Through Hole
Package	1 x 1 in
Series	JSM10
Input Voltage Range (V)	18 → 36 V dc
Isolated	Yes
Width	25.4 (mm)
Depth	10.16 (mm)
Isolation Voltage (V)	1.5 (kV dc)
Length	25.4 (mm)
Minimum Temperature	-40 (°C)
Input Voltage Nominal (V)	24 V dc
Power Rating	10 (W)
Output Voltage (V)	±15 (V dc)
Output Current (A)	±333 (mA)

We could not find inventory or pricing across major distributors for the JSM1024D15 by XP Power.
