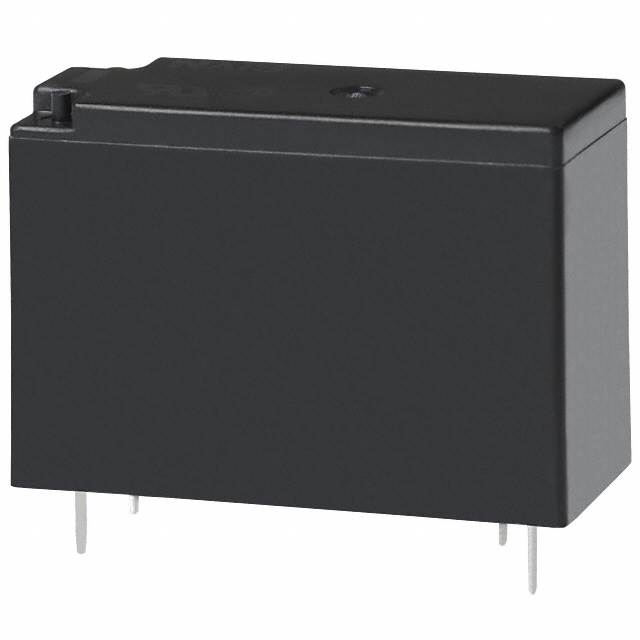

JW1FSN-DC12V
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the JW1FSN-DC12V by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the JW1FSN-DC12V
| Part Name | JW1FSN-DC12V |
| Manufacturer | Panasonic Electric |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Operating Temperature | +60 (°C) |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | PCB Mount |
| Series | JW |
| Latching | No |
| Coil Voltage (V) | 12 (V dc) |
| Length | 28.6 (mm) |
| Contact Configuration | SPDT |
| Application | Power |
| Depth | 12.8 (mm) |
| Height | 20 (mm) |
| Maximum Switching Power Dc | 300 W |
| Maximum Switching Power Ac | 2.5 kVA |
| Contact Material | Silver Alloy |
| Number Of Poles | 1 |
| Terminal Type | Through Hole |
| Coil Resistance | 270 (Ω) |
