KB817-B
Optocoupler; SMD; Channels: 1; Out: transistor; Uinsul: 5kV; Uce: 35
Availability: In Stock
Package Type: PDIP-4
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the KB817-B by Kingbright and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

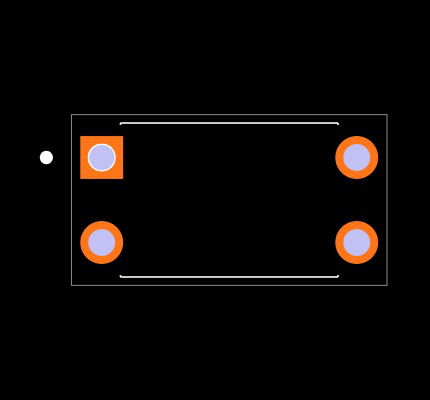

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the KB817-B
| Part Name | KB817-B |
| Manufacturer | Kingbright |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Forward Voltage (V) | 1.4 (V) |
| Output Device | Transistor |
| Input Current Type (A) | DC |
| Mounting Type | Surface Mount |
| Typical Rise Time | 4 (µs) |
| Maximum Current Transfer Ratio (A) | 260 (%) |
| Isolation Voltage (V) | 5 kVrms |
| Number Of Channels | 1 |
| Minimum Current Transfer Ratio (A) | 50 % |
| Package Type | SMD |
| Maximum Input Current (A) | 50 mA |
| Number Of Pins | 4 |
| Typical Fall Time | 3 (µs) |
Inventory for the KB817-B by Kingbright from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
17,617
|
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
| Newark |
17,817
|
|
Visit Site | |
| TME |
4,508
|
|
Visit Site | |
| element14 Singapore |
17,817
|
|
Visit Site |
No issues have been reported for the KB817-B
If you experienced any issues with the symbol or footprint, please report it.
